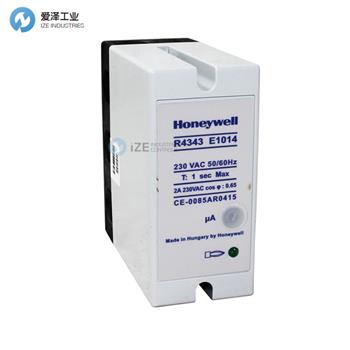

HONEYWELL火焰繼電器R4343E1014規格描述
Approvals | CE approved according EN298 (for intermittent operation) |
Protection class | IP40 |
Ambient temperature | -10 ... 60 oC |
Maximum humidity | 90 %rh |
Note | The R4343D models will operate also with the "Satronic" IRD820/1020 range of infrared sensors. Note that this combination is NOT CE approved for use on installations that fall under the GAD (Gas Appliances Directive). |
Outputs | 1xDPDT |
Operation | Intermit. |
Additional description | R4343D models are for use with rectification type flame sensors, such as flame rods and C7012A/G UV sensors. |
HONEYWELL火焰繼電器R4343E1014產品介紹
The R4343D/E series is a flame switch for intermittent operation to indicate presence or absence of a flame and to be applied in commercial or industrial burner installations. light.
? Flame current meter jack socket on the front permits monitoring of flame signal strength, by using any appropriate microampere meter (0-10uA minimum scale).
? Plug-in mounts onto a sub base (included) for surface mounting. Providing an indication of absense or presence of a flame in intermittent industrial oil/gas burner applications by an open or closed relay contact.
Approvals:CE approved according EN298 (for intermittent operation)
Protection class:IP40
Ambient temperature:-10 ... 60 oC
Maximum humidity:90 %rh
Note:The R4343D models will operate also with the "Satronic" IRD820/1020 range of infrared sensors. Note that this combination is NOT CE approved for use on installations that fall under the GAD (Gas Appliances Directive).
Outputs:xDPDT
Operation:Intermit.
Additional description:R4343D models are for use with rectification type flame sensors, such as flame rods and C7012A/G UV sensors. R4343E models are for use with Honeywell UV sensor models C7027, C7035 and C7044.
R4343D / E系列是用于間歇運行的火焰開關，用于指示是否存在火焰，并用于商業或工業燃燒器安裝。光。
?前面的火焰電流計插孔可通過使用任何合適的微安表（0-10uA最小刻度）監視火焰信號強度。
?插入式安裝到子基座（隨附）上以進行表面安裝。通過斷開或閉合的繼電器觸點來指示間歇性工業油氣燃燒器應用中是否存在火焰。
認證：CE通過EN298認證（適用于間歇運行）
防護等級：IP40
環境溫度：-10 ... 60 oC
最高濕度：90％rh
注意：R4343D型號也可與“ Satronic” IRD820 / 1020系列紅外傳感器一起使用。請注意，此組合未經CE批準可用于GAD（燃氣具指令）下的安裝。
輸出：xDPDT
操作：間歇。
附加說明：R4343D模型用于整流型火焰?zhèn)鞲衅鳎缁鹧姘艉虲7012A / G UV傳感器。 R4343E模型與霍尼韋爾C7027，C7035和C7044紫外線傳感器一起使用。
HONEYWELL火焰繼電器型號：
HONEYWELL R4343E1006
HONEYWELL R4343E1014
HONEYWELL R4343E1048-ST005
HONEYWELL Flame relay NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL火焰繼電器R4343E1014的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
HONEYWELL火焰繼電器R4343E1014技術數據
