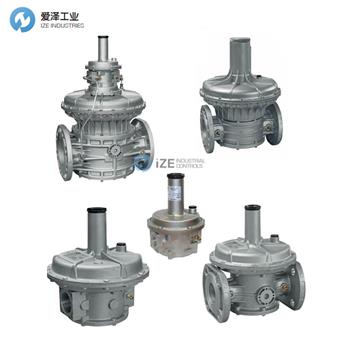

MADAS燃氣調壓閥RG/2MC系列技術參數
TECHNICAL DATA | |
Use | non-aggressive gases of the three families (dry gases) |
Ambient temperature (TS) | -15 ÷ +60 °C |
Operating pressure range (Pe) | 0.5÷1 bar / 1÷2 bar |
Accuracy class | AC10 (P2 ± 10%) |
Closing pressure class | SG30 (P2 + 30%) |
Mechanical resistance | Group 2 (according to EN 13611) |
Rp threaded connections in line | (DN 15 - DN 20 - DN 25 - DN 32 - DN 40 - DN 50) according to EN 10226 |
Rp threaded connections at 90° | (DN 15 - DN 20 - DN 25 - DN 32 - DN 40 - DN 50) according to EN 10226 |
Flanged connections that can couple with PN 16 flanges | (DN 25* - DN 32 - DN 40 - DN 50 - DN 65 - DN 80 - DN 100) ISO 7005 / EN 1092-1 |
NPT threaded or ANSI 150 threaded connections | on request |
Filter element (only models FRG/2MC) | filtering 50μm |
MADAS燃氣調壓閥RG/2MC系列介紹
當入口壓力 (Pe) 和/或流量 (Q) 發生變化時，提供預設且恒定的“下游”壓力值 (Pa)（在預期的操作范圍內）的設備。 即使在入口壓力突然發生劇烈變化的情況下，補償式閉塞器也能確保調節出口壓力 (Pa) 時的精確度。
它配備：
? 一個調節出口壓力的彈簧；
? 安全膜；
? 一個輸出壓力測試接頭（有一些例外），用于控制出口壓力（Pa）。 在某些型號上，壓力測試接頭也出現在輸入端；
它還可以配備內置過濾元件（FRG/2MC 型號）。
可用的 90° 連接用于從 DN 15 到 DN 50 的螺紋連接。
參考標準：EN 88-2 – EN 13611。工業現場工業用組件。
Device which supplies a preset and constant “downstream” pressure value (Pa) (within the intended operating limits) when the inlet pressure (Pe) and/or the flow rate (Q) changes. The compensated obturator ensures precision when adjusting the outlet pressure (Pa) even in the case of high and sudden variations in the inlet pressure.
It is fitted with:
? a spring to adjust the outlet pressure;
? a safety membrane;
? an output pressure test nipple (with some exceptions) to control the outlet pressure (Pa). On some models the pressure test nipple is also present on the input;
It can also be supplied with a built-in filtering element (FRG/2MC models).
Available 90° connections for threaded connections from DN 15 to DN 50.
Reference standards: EN 88-2 – EN 13611. Component for industrial use on industrial sites.
MADAS燃氣調壓閥RG/2MC系列其他常用型號：
MADAS RG/2MC DN15
MADAS RG/2MC DN20
MADAS RG/2MC DN25
MADAS RG/2MC DN32
MADAS RG/2MC DN40
MADAS RG/2MC DN50
MADAS RG/2MC DN65
MADAS RG/2MC DN80
MADAS RG/2MC DN100
