UNITED AUTOMATION模塊 FC11AL技術參數
Signal Span Minimum | 0 to 2V dc |
Signal Span Maximum | 0 to 25V dc |
Signal zero offset | 0 to 30% of span |
dV/dt rating | 100V/μs |
Max. Gate/Line voltage | 440V ac |
Trigger isolation voltage | 4000Vrms |
Trigger output rating | 0.8A |
Storage temperature range | “-20 to +85°C” |
AC input supply | 12 to 18V ac @ 65mA |
Auxiliary output | 5V dc |
Line Frequency | 50/60 Hz |
Operating temperature range | 0 to +65°C |
Adjustable soft start | 0-20 seconds |
Mono-link fuse | F100mA (HRC) |
Manual potentiometer | 2K, 5K or 10K |
Power connections | 6.3mm Amp tags |

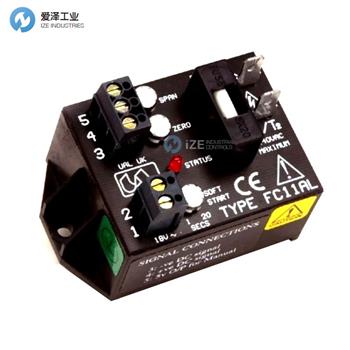

UNITED AUTOMATION模塊FC11AL介紹
FC11AL是一款多功能單相或相間觸發模塊，旨在通過可變相位角調制精確控制感性負載。該模塊具有可調信號匹配和軟啟動功能，非常適合需要平穩可控的電力輸送的應用，例如烤箱、酒店設備、加熱燈和工業烘干機。FC11AL采用創新的MONO-LINK?點火系統，以最少的布線確?？煽窟\行，是可靠性和安裝便捷性至關重要的環境的理想選擇。該模塊的全封閉設計增強了安全性和耐用性，非常適合工業環境。
主要特點：
多功能電源控制：支持高達 440V AC 的三端雙向可控硅或晶閘管的相角觸發，非常適合變壓器和電機等感應負載。
MONO-LINK? 點火系統：獨特的門到門點火方法降低了布線復雜性并提高了可靠性。
高隔離度：光耦合輸出具有4000Vrms隔離電壓，確保安全穩定運行。
可調節軟啟動：通過可調節軟啟動功能（0-20 秒）平穩增加電力輸送，保護敏感設備。
狀態 LED：清晰指示輸出級別，方便監控和排除故障。
耐用且安全：完全封閉，可增強工業環境中的安全性，并具有堅固的構造質量。
The FC11AL is a versatile single-phase or phase-to-phase firing module designed to precisely control inductive loads with variable phase angle modulation. Featuring adjustable signal matching and soft start, the module is ideal for applications that require smooth, controllable power delivery, such as ovens, hospitality equipment, heat lamps, and industrial dryers. Featuring the innovative MONO-LINK? ignition system, the FC11AL ensures reliable operation with minimal wiring, making it ideal for environments where reliability and ease of installation are critical. The module's fully enclosed design enhances safety and durability, making it ideal for industrial environments.
Key Features:
Versatile Power Control: Supports phase angle firing of triacs or thyristors up to 440V AC, ideal for inductive loads such as transformers and motors.
MONO-LINK? ignition system: Unique door-to-door ignition method reduces wiring complexity and improves reliability.
High Isolation: Optically coupled outputs feature 4000Vrms isolation voltage, ensuring safe and stable operation.
Adjustable Soft Start: Smoothly increase power delivery with adjustable soft start function (0-20 seconds) to protect sensitive equipment.
Status LED: Clearly indicates output level for easy monitoring and troubleshooting.
Durable and Safe: Fully enclosed for enhanced safety in industrial environments and rugged build quality.
UNITED AUTOMATION模塊其他常用型號：
UNITED AUTOMATION FC11AL
UNITED AUTOMATION FC11BL
UNITED AUTOMATION AMF11
UNITED AUTOMATION BM1
UNITED AUTOMATION BM2
UNITED AUTOMATION BM3
UNITED AUTOMATION Modules NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于UNITED AUTOMATION模塊FC11AL的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for UNITED AUTOMATION products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
