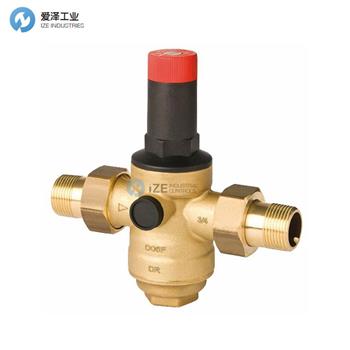

RESIDEO減壓閥D06FH-2B技術參數
Technical Properties | |
Medium type | drinking water |
DN size | 50 mm |
Connection Inlet/Outlet | conn. set, ext. thread |
Outlet pressure | 1.5 ... 12 bar |
Max. operating temp. | 60C (70C with max. press. 10bar) |
Flow capacity Kvs | 12 |
Body material | brass, dezincification resistant |
Spring bonnet material | synthetic material |
Filter mesh | 0.16 mm |
Filter bowl | brass |
Balanced seat design | Yes |
Additional Descriptions | Inlet pressure balancing - no influence on outlet pressure by fluctuating inlet pressure |
Port diameter | 2 inch |
Maximum inlet pressure | 25 bar |
Preset Outlet Pressure | 5 bar |
Minimum pressure drop | 1 bar |
RESIDEO減壓閥D06FH-2B介紹
產品描述
根據 EN 806-2 標準，此類減壓閥用于保護家庭水系統，防止供水壓力過高。它們也可用于工業或商業應用范圍內。在安裝減壓閥后，可以避免壓力損壞，并降低水耗。即使入口壓力波動較大，設定壓力也能保持恒定。減壓操作及其維持在恒定水平，有助于減少系統中的流動噪音。
Product Description
According EN 806-2 pressure reducing valves of this type protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.
RESIDEO減壓閥D06F系列其他常用型號：
RESIDEO D06FH-1/2B
RESIDEO D06FH-3/4B
RESIDEO D06FH-1B
RESIDEO D06FH-11/4B
RESIDEO D06FH-11/2B
RESIDEO D06FH-2B
RESIDEO pressure reducing valve NEW + ORIGINAL+ ONE YEAR WARRANTY
