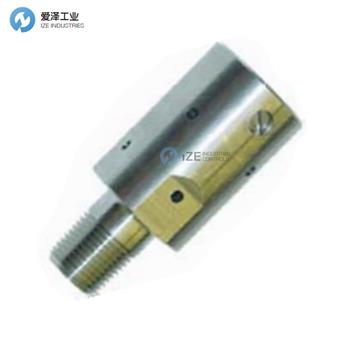

SIGMA易熔塞15RS70-281技術參數
Product Specifications | |
Flow Control Application | Normally Closed |
Control Functio | Two-Way - Stacked Ball |
Pressure Rating Body (Control Ports) | 10,000 PSI maximum (690 bar) |
Media Service | Hydraulic Fluid |
Temperature Service (Select) | 281℉ |
Connection Size (Body) | 15RS150 1/2-14 Male N.P.T. Inlet, exhaust to atmosphere |
Orifice | 1/4 Diameter |
Cv Factor | 1.45 |
Wetted Component Material (Metal) | 316 Stainless Steel |
Seal Material | Viton |
Mounting | Field Mount (Standard) |
Weight | 1 Lb. |
Operating Temperature | -20° F to +250° F (-29° C to +121° C) |
Overall Dimensions | 3-3/8 Height x 1-1/2 Diameter (8.57 cm Height x 3.81 cm Diameter) |
SIGMA易熔塞介紹
15RS70 易熔閥是一種雙位、三通常開阻斷和排放、溫度敏感流量控制裝置。當高溫或靠近火源導致閥門溫度超過固體共晶熔點時，閥門彈簧（第 13、17 和 18 項）會釋放移動閥芯（第 7 項）的壓力，以阻斷入口供應壓力并將下游（接收電路）壓力從排氣口排出。
易熔閥用于關閉安全閥執行器，以將潛在燃料源與火源隔離。
易熔閥有四種常見溫度：158℉、203℉、255℉ 和 281℉。
The 15RS70 Fusible Valve is a two position, three-wayn ormally open Block & Bleed, Temperature Sensitive flow control device. When intense heat or close proximity to a fire cause the valve temperature to exceed the solid eutectic melting point, valve springs (Items 13, 17 and 18) decompress moving Poppet (Item 7) to block inlet supply pressure and vent downstream (receiving circuit) pressure out the Exhaust port.
Fusible Valves are used to close safety valve actuators to isolate potential fuel sources from fire.
Fusible Valves are available with four common temperatures: 158℉,203℉, 255℉ and 281℉.
SIGMA易熔塞其他常用型號：
SIGMA 15RS70-281
SIGMA 15RS70-158
SIGMA 15RS70-203
SIGMA 15RS70-255
