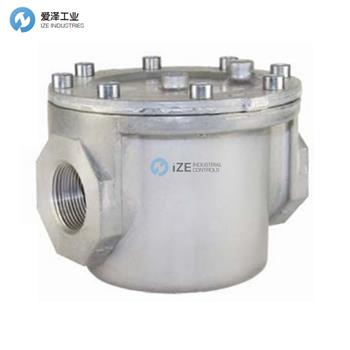

MAXITROL過濾器GF40M系列技術參數
Specifications | |
Pipe Sizes | 1/2” to 2” threaded connections with NPT or ISO7-1 threads. |
Housing MateriaL | GF40, GF60, GF80: aluminum. |
Filter Mat Material | Polypropylene fleece |
Mounting Position | . Suitable for multi-positional mounting, preferably with lid facing down or to the side to facilitate removal of debris during maintenance. |
NOTE:All Maxitrol gas filters should be installed and operated in accordance with | |
Approvals | CE |
Construction and Design | Function according to DIN 3386, Gas Appliances Regulation 2016/426/EU and Pressure |
Gas Types | Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, LP gas-air |
Pressure Tap Connector | Optional: Pressure tap (PF10) connections inlet and/or outlet side |
Maximum Inlet Pressure | 60 psi (400 kPa) |
Maximum Pressure Drop | 1 kPa (10 mbar) (from this value, the filter mat must be changed). For more information see pressure drop chart, page 68. |
Ambient Temperature Ranges | -4 to 175°F (-20 to 80°C) |
Storage and Transport Temp | -58 to 175°F (-50 to 80°C) |
Filter Replacement | GF40 Models: KIT-GF40 |
MAXITROL過濾器GF40M系列介紹
氣體和空氣過濾器可保護下游控制裝置（調節器、自動關閉閥）免受微粒污染。 推薦用于配件、調節器和控制裝置的上游。 適用于住宅、商業烹飪、過程加熱和工業燃燒器行業。
Gas and air filters protect downstream controls (regulators, automatic shut-off valves) from particulate contamination. Recommended for use upstream of fittings, regulators, and controls. Applications for the residential, commercial cooking, process heating, and industrial burner industries.
MAXITROL過濾器GF40M系列其他常用型號：
MAXITROL HF2000F100-0-0C
MAXITROL GF125MF-4040-A-0M
MAXITROL GF40M-44
MAXITROL GF60M-66
MAXITROL GF60M-88
MAXITROL GF80M-1010
MAXITROL GF80M-1212
MAXITROL GF80M-1616
MAXITROL GF25MF-88
MAXITROL HF2000F80
MAXITROL HF2000F100
MAXITROL GF125MF-4040
MAXITROL GF150MF-4848
MAXITROL GF40M-44-A-0M
MAXITROL FILTERS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAXITROL過濾器GF40M-44-A-0M的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAXITROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
MAXITROL過濾器GF40M系列GF40M-44-A-0M技術參數及介紹
