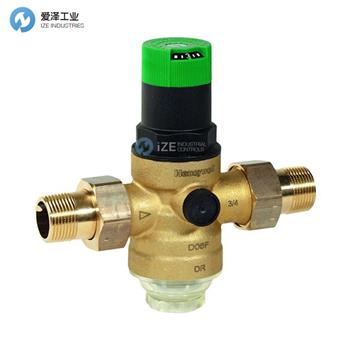

RESIDEO減壓閥D06F-1LFA技術參數
Specifications | |
Approvals and Standards | DVGW, SINTEF, VA (ETA) |
Filter Mesh Size | 0.16 mm |
Lead Free | Yes |
Outlet Pressure (Max) | 6 bar |
Valve Body Material | Lead-free Brass |
DN Size | 25 mm |
Ambient Relative Humidity (Max) | 85% Non Condensing |
Nominal Pressure | PN 16 |
Port Diameter | 1 in |
Connection Type | External Thread |
Inlet Pressure (Max) | 16 bar |
Media Temperature (Max) | 30 °C |
Outlet Pressure (Min) | 1.5 bar |
Balanced Seat Design | Yes |
Controlled Media | Drinking Water |
Ambient Relative Humidity (Min) | 25% Non Condensing |
Flow Coefficient (Max) | 5.8 |
Set point Scale | Yes |
RESIDEO減壓閥D06F-1LFA產品介紹
Braukmann D06F-LF 減壓閥可保護家用飲用水裝置免受供水管線高壓和壓力波動的影響，符合 EN 806-2 標準。在規格范圍內，D06F 適用于家用、工業和商業裝置。通過安裝減壓閥，可避免增壓損壞并減少用水量。即使入口壓力波動很大，設定壓力也能保持恒定。降低工作壓力并將其保持在恒定水平可最大限度地減少裝置中的流動噪音。
? 入口壓力平衡 - 入口壓力波動不會影響出口壓力
? 最大尺寸 1 1/4 英寸，經 LGA 批準，噪音低，第 1 組無限制
? 閥芯采用優質合成材料，可完全更換
? 通過旋轉調節旋鈕設定出口壓力
? 設定壓力直接顯示在設定點刻度上
? 調節彈簧不與飲用水接觸
? 一體式細濾器
? 也可不帶配件
? 符合 BSEN 1567
? 所有材料均符合 UBA 標準
? 所有材料均經 ACS 批準
The Braukmann D06F-LF pressure reducing valves protect domestic drinking water installations against high pressure and pressure surges in the supply lines according the EN 806-2. Within the range of their specifications, the D06F is suitable for domestic, industrial and commercial installations.By installing a pressure reducing valve, pressurization damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.
? Inlet pressure balancing - no influence on outlet pressure by fluctuating inlet pressure
? Up to size 1 1/4 in approved by LGA for low noise, Group 1 without limitations
? The valve insert is of high quality synthetic material and can be fully exchanged
? The outlet pressure is set by turning the adjustment knob
? The set pressure is directly indicated on the set point scale
? The adjustment spring is not in contact with the drinking water
? Integral fine filter
? Also available without fittings
? Conforms to BSEN 1567
? All materials are UBA conform
? All materials are ACS approved
RESIDEO減壓閥D06F系列其他常用型號：
RESIDEO D06F-11/4LFE
RESIDEO D06F-2LFA
RESIDEO D06F-2LFE
RESIDEO D06F-11/2LFE
RESIDEO D06F-11/2LFA
RESIDEO D06F-1/2LFA
RESIDEO D06F-1LFE
RESIDEO D06F-3/4LFE
RESIDEO D06F-11/4LFA
RESIDEO D06F-1LFA
RESIDEO D06F-1/2LFE
RESIDEO D06F-3/4LFA
