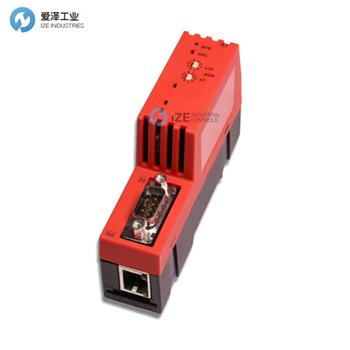

HILSCHER網關NT 50-CO-EN技術參數
Product | Product name | NT 50-CO-EN |
Part number | 1756.110 | |
Brief description | Gateway CANopen to Ethernet | |
Communication controller | Communication controller | netX 50 |
Integrated Memory | RAM | 8 MB SDRAM |
FLASH | 4 MB serial Flash | |
Power supply | Supply voltage | 24 V ± 6 V DC |
Current consumption at 24 V (typically) | 72 mA | |
Connector type | Mini-COMBICON, 2-pin | |
Communication interface X2 | Communication interface | CANopen |
Interface type | ISO 11898, optically isolated | |
Connector type | D-Sub male, 9-pin | |
Communication interface X3 | Communication interface | Ethernet |
Interface type | 10BASE-T/100BASE-TX, isolated | |
Connector type | 1 * RJ45 | |
Diagnostic interface | Type | Ethernet, 4-pin |
Connector type | RJ45 socket | |
Display | LED displays | SYS System status |
APL Application status | ||
COM Communication status | ||
LINK Link, ACT Activity | ||
Permitted ambient conditions | Ambient temperature (operation) | 0 °C … +60 °C |
Ambient temperature (storage) | -40 °C … +85 °C | |
Relative humidity | 10 % … 95 %, non-condensing | |
Altitude | 0 m … 2000 m | |
Device | Dimensions (L x W x H) | 100 x 26 x 66 mm (without connector) |
Weight | appr. 80 g | |
Degree of protection | IP 20 | |
Mounting type | on DIN rail EN 60715 | |
Configuration | Configuration software | SYCON.net |
Conformity | RoHS | Yes |
Conformance with EMC directives | CE sign | Yes |
UKCA sign | Yes | |
Emission | EN 55011 / BS EN 55011 | |
Immunity | EN 61131-2 / BS EN 61131-2 |
HILSCHER網關NT 50-CO-EN產品介紹
網關 CANopen 到以太網
用于簡單轉換的成本優化入門級網關
? 將 CANopen 節點集成到以太網網絡中，反之亦然
? I/O 數據可以單獨映射
? 小于 20 毫秒的短 I/O 數據轉換周期
? 節省空間、緊湊的設計
? 可加載固件實現靈活使用 - 也適用于雙從屬轉換
? 具有通過以太網的診斷和配置接口
Gateway CANopen to Ethernet
Cost-optimized entry level gateway for simple conversions
? Integrates a CANopen Node into an Ethernet network, and vice versa
? I/O data can be mapped individually
? Short I/O data conversion period of less than 20 ms
? Space-saving, compact design
? Loadable firmware enables a flexible use - also for dual slave conversions
? With diagnosis and configuration interface via Ethernet
