ETHERWAN以太網交換機EX32008技術參數
Technology | |
Standards | ? IEEE 802.3u 100BASE-TX/FX |
Forward and Filtering Rate | ? 14,880pps for 10Mbps |
Packet Buffer Memory | ? 448K bits |
Processing Type | ? Store-and-Forward |
Address Table Size | ? 1K MAC addresses |
Power | |
Input | ? 12-48VDC (Terminal Block) |
Power Consumption | ? 2.47W@24VDC/ |
Protection | ? Reverse Polarity Protection |
Mechanical | |
Casing | ? Plastic Case |
Dimensions | ? 35 x 86 x 149mm (W x D x H) (1.4" x 3.44" x 5.96") |
Weight | ? 0.3Kg (0.66lbs) |
Installation | ? DIN-Rail (Top hat type 35mm) mounting |
ETHERWAN以太網交換機產品介紹

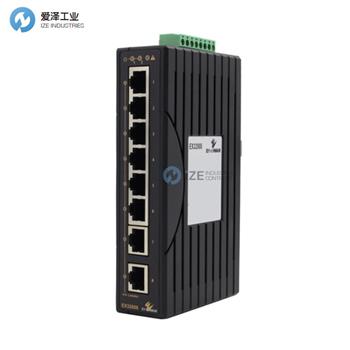

EtherWAN's EX32008 Series is a industrial unmanaged Fast Ethernet switching platform, designed for easy deployment in harsh environments. The EX32008 Series supports 12 to 48VDC redundant power input, and also provides relay alarm while power failure or port link down occur.
The EX32008 is equipped with eight Fast Ethernet ports, or a combination of Fast Ethernet copper ports and one 100FX port for long distance connectivity. This versatile switch features 10/100Mbps transfer speeds, full/half-duplex auto-negotiation and auto MDI/MDIX operation allowing you to connect your network devices without hassles.
The EX32008 is feature-rich with full wire speed Fast Ethernet throughput, QoS (Quality of Service), and IEEE802.3az EEE (Energy Efficient Ethernet). The EX32008 Series is built with relay alarm to notify users when power fails or link down occurs. It also supports port link down alarm by enabling the DIP switch. The EX32008 Series is housed with DIN rail mountable plastic compact case which is an ideal solution for applications in harsh environments.
Spotlight
Industrial Grade
Supports -10 to 60°C (14 to 140°F) operating temperature
Fiber Connectivity
Up to one 100BASE-FX port with SC, ST, WDM options
High Reliability
Fanless design
No moving parts
EtherWAN 的 EX32008 系列是一種工業非托管快速以太網交換平臺，專為在惡劣環境中輕松部署而設計。 EX32008 系列支持 12 至 48VDC 冗余電源輸入，并在發生電源故障或端口鏈路斷開時提供繼電器警報。
EX32008 配備八個快速以太網端口，或快速以太網銅質端口和一個 100FX 端口的組合，用于長距離連接。 這款多功能交換機具有 10/100Mbps 傳輸速度、全/半雙工自動協商和自動 MDI/MDIX 操作，讓您可以輕松連接網絡設備。
EX32008 功能豐富，具有全線速快速以太網吞吐量、QoS（服務質量）和 IEEE802.3az EEE（節能以太網）。 EX32008 系列內置繼電器警報，可在發生電源故障或鏈路斷開時通知用戶。 它還支持通過撥碼開關使能端口鏈路斷開報警。 EX32008 系列配備 DIN 導軌安裝式塑料緊湊型外殼，是惡劣環境應用的理想解決方案。
聚光燈
工業級
支持 -10 至 60°C（14 至 140°F）的工作溫度
光纖連接
最多 1 個 100BASE-FX 端口，帶 SC、ST、WDM 選項
高可靠性
無風扇設計
無移動部件
