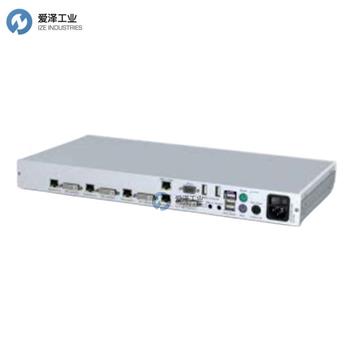

Guntermann & Drunck光纖拓展模塊DVI-Vision-CAT-MC2-AR-CON技術參數
General | |
Product group | KVM extenders |
Number of workstations | 1 |
Housing | |
Material | anodised aluminium |
Width | 270 mm |
Height | 44.5 mm |
Depth | 210 mm |
IP protection class | IP20 |
Weight | ca. 1.53 kg |
Operating conditions | |
Operating temperature | 5 °C to 45 °C |
Operating air humidity | 20 % to 80 %, non-condensing |
Area of application | Interior |
Maximum operating altitude | 3048m above sea level |
Storage temperature | -20 °C to 60 °C |
Storage air humidity | 15 % to 85 %, non-condensing |
MTBF | 200000 h at 25°C |
Power supply 1 | |
Input voltage | 100-240 VAC |
Input frequency | 60-50 Hz |
Current consumption | 0.4-0.2 A |
Power consumption max. | 19.6 W |
Heat output max. | 14.2 W |
Power supply 2 | |
Input voltage | 12 VDC |
Current consumption | 1.5 A |
Power consumption max. | 17.1 W |
Heat output max. | 11.7 W |
Guntermann & Drunck光纖拓展模塊DVI-Vision-CAT-MC2-AR-CON產品介紹
通過 CAT 電纜接收單鏈路 DVI 信號的光纖拓展模塊
視頻
blue dec? ——新一代壓縮算法，可實現最佳視頻質量和無延遲傳輸
E-DDC支持
MC2 型號提供兩個視頻接口，并為每個視頻通道提供全帶寬。每個視頻信號都需要單獨的傳輸路徑。MC2 光纖拓展模塊可幫助您創建多顯示器控制臺。
分辨率高達
1920 × 1200 @ 60 Hz (WUXGA/60Hz),
1280 × 1024 @ 85 Hz
信號
全鍵盤/鼠標仿真
透明音頻信號（立體聲、模擬）
透明 RS232（最大 115.200 bps）
傳播
通過 CAT-x 電纜
距離可達 140 m
設備
用于在復雜安裝中快速定位設備的識別 LED
操作
只需將操作硬件和監控器與光纖拓展模塊的相應接口連接即可
相關手冊中描述了調試的更多步驟
系統更新
通過 Config Panel 21 更新（HTML5，無 Java，優化操作）
特征
安全功能
通過監控功能，可以將設備狀態消息自動輸出到 Syslog 服務器或 SNMP。Web 界面允許手動監控設備。
屏幕凍結：如果光纖拓展模塊由于連接斷開或計算機顯卡出現問題而丟失視頻信號，則屏幕凍結功能會“凍結”顯示器最后顯示的圖像。此狀態由紅色半透明框突出顯示。當活動視頻信號再次存在時，該功能會自動取消。
Console module to receive single link DVI signals via CAT cable
Video
bluedec? – advanced developed compression algorhythm of the latest generation for best video quality and latency-free transmission
E-DDC support
The MC2 variant offers two video interfaces and provides full bandwidth for each video channel. Each video signal requires a separate transmission path. MC2 console modules help you create multi-monitor consoles.
resolution up to
1920 × 1200 @ 60 Hz (WUXGA/60Hz),
1280 × 1024 @ 85 Hz
Signals
full keyboard/mouse emulation
transparent audio signals (stereo, analog)
transparent RS232 (max. 115.200 bps)
Transmission
over CAT-x cable
distances up to 140 m
Device
ident LED for quick location of the device in complex installations
Operation
simply connect the operating hardware and monitor with the corresponding interfaces of the console module
further steps for commissioning are described in the relevant manual
System update
updating via Config Panel 21 (HTML5, Java-free, optimized operation)
Features
Security features
With the Monitoring function, you can auto-output device status messages to Syslog servers or SNMP. The web interface lets you monitor the device manually.
Screen-Freeze: If the console module loses the video signal due to a broken connection or a problem with the computer's graphics card, the Screen-Freeze function "freezes" the last displayed image of the monitor. This state is highlighted by a red semi-transparent frame. The function is automatically cancelled when an active video signal exists again.
