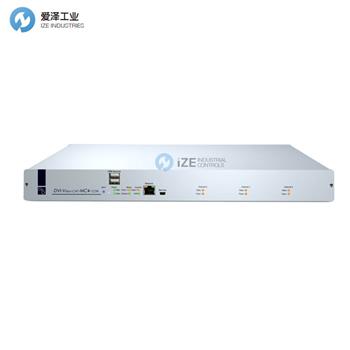

Guntermann & Drunck計算機模塊DVI-Vision-CAT-MC2-AR-CPU技術參數
General | |
Product group | KVM extenders |
Input options | |
USB mouse | yes |
USB keyboard | yes |
PS/2 mouse | yes |
PS/2 keyboard | yes |
Transmission | |
Number of transmission channels | 2 |
Redundant transmission channels | no redundant KVM transmission |
Range | 140 m (AWG22) |
KVM matrix system component | Computer module |
Medium | CAT5e |
Data rate | 1 Gbit/s |
Video input | |
Number of video channels | 2 |
Format | Singlelink DVI |
Colour depth | 24 bit |
Pixel rate | ca. 25 MHz to ca. 165 MHz |
Vertical frequency | 24 Hz to 120 Hz |
Horizontal frequency | 25 kHz to 130 kHz |
Exemplary resolutions | 1920 × 1200 (60 Hz) |
Supported interlace resolutions | 400i (60 Hz) |
Video output | |
Number of video channels | 2 |
Format | Singlelink DVI |
Colour depth | 24 bit |
Pixel rate | ca. 25 MHz to ca. 165 MHz |
Vertical frequency | 24 Hz to 120 Hz |
Horizontal frequency | 25 kHz to 130 kHz |
Exemplary resolutions | 1920 × 1200 (60 Hz) |
Supported interlace resolutions | 400i (60 Hz) |
Note | Only the listed Interlace formats are supported. |
Audio | |
Transmission type | Stereo |
Resolutions | 24 bit digital |
Sampling rate | up to 96 kHz |
Bandwidth | 22 kHz |
Audio support | Analog |
Serial | |
Standard | RS232 |
Transparent transmission | yes |
Data rate | max. 115200 bps |
Signals | TxD |
Network | |
Medium 1 | CAT5 |
Data rate 1 | 10 MBit/s |
Maintenance | |
Update via | ConfigPanel (Network) |
Serviceport settings | 115200bps (8/N/1) |
Housing | |
Material | anodised aluminium |
Width | ca. 270 mm |
Height | ca. 44 mm |
Depth | ca. 210 mm |
IP protection class | IP20 |
Weight | ca. 1.60 kg |
Operating conditions | |
Operating temperature | 5 °C to 45 °C |
Operating air humidity | 20 % to 80 %, non-condensing |
Area of application | Interior |
Maximum operating altitude | 3048m above sea level |
Storage temperature | -20 °C to 60 °C |
Storage air humidity | 15 % to 85 %, non-condensing |
MTBF | 200000 h at 25°C |
Conformities | CE compliant (see downloads) |
Power supply | |
Input voltage | 100-240 VAC |
Input frequency | 60-50 Hz |
Current consumption | 0.3-0.2 A |
Power consumption max. | 17.4 W |
Heat output max. | 14.4 W |
Power supply 2 | |
Input voltage | 12 VDC |
Current consumption | 1.4 A |
Power consumption max. | 15 W |
Heat output max. | 12 W |
Guntermann & Drunck計算機模塊DVI-Vision系列產品介紹
DVI-Vision系列的矩陣兼容KVM延長器通過專用的CAT或光纖連接（最長可達10,000米）擴展鍵盤、視頻和鼠標信號，以及其他外設數據（例如音頻和USB）。一個延長器系統由計算機模塊（CPU）和兼容的控制臺模塊（CON）組成。無論在延長器還是矩陣應用中，都可以近實時控制計算機。DVI-Vision系列支持單鏈接DVI，數字視頻分辨率高達1920 × 1200（60 Hz）。視頻數據以像素完美的形式進行處理，并得益于bluedec?— G&D的先進多級無損壓縮技術，提供出色的手眼協調。
視頻
bluedec? – 先進發展出的多級壓縮，提供最佳視頻質量和幾乎無延遲的傳輸。這種方法實現了像素完美的視頻傳輸，同時有效利用帶寬。
最終設備可以靈活組合，即使處理不同的視頻信號（混合與匹配）。
利用工作站顯示器的EDID數據。
靈活的EDID配置文件選項，以優化顯示器設置。
分辨率高達
1920 × 1200 @ 60 Hz，
1280 × 1024 @ 85 Hz。
信號
透明音頻信號（立體聲，模擬）
透明RS232（最大115,200 bps）
傳輸
傳輸距離可達140米通過CAT。
設備
通過物理隔離工作場所和計算機，提高安全性。
無需軟件安裝，即可訪問計算機的標準接口。
這些設備與ControlCenter-Digital和ControlCenter-Compact系列（矩陣操作）以及其他計算機和工作場所連接的終端設備（延長器操作）兼容。
內置電源適配器用于主電源供應。
CON-2變體：控制臺模塊具有兩條傳輸線路，提供冗余功能。
這些模塊可以連接到各種相應設備，例如兼容的計算機模塊或KVM矩陣切換器，切換可以通過按鈕、熱鍵或自動進行，具體取決于配置。
UC變體：計算機模塊具有兩條傳輸線路，提供冗余功能。
這些模塊可以連接到各種相應設備，例如兼容的控制臺模塊或KVM矩陣切換器。
多通道變體（MC）：用于多顯示器工作站的模塊，支持多通道視頻。
MC模式為每個視頻通道利用全部帶寬，每個通道需要單獨的傳輸線路。
The matrix-compatible KVM extenders of the DVI-Vision series
extend keyboard, video, and mouse signals, as well as other peripheral data (e.g., audio and USB), via a dedicated CAT or fiber connection (up to 10,000 m). An extender system consists of a computer module (CPU) and a compatible console module (CON). Computers can be controlled in near real-time – both in extender and matrix applications. The DVI-Vision series supports SingleLink DVI for digital video resolutions up to 1920 × 1200 (60 Hz). Video data is processed pixel-perfectly and offers excellent hand-eye coordination, thanks to bluedec? – G&D's advanced, multi-stage, lossless compression technology.
Video
bluedec? – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.
The end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)
EDID data utilization from the workstation monitor
Flexible EDID profile options for optimized monitor settings
Resolution up to
1920 × 1200 @ 60 Hz,
1280 × 1024 @ 85 Hz
Resolution up to
1920 × 1200 @ 60 Hz,
1280 × 1024 @ 85 Hz
Signals
Transparent audio signals (stereo, analog)
Transparent RS232 (max. 115,200 bps)
Transmission
The transmission distance is up to 140 meters over CAT
Device
Improved security through physical separation between workplaces and computers
Access to standard interfaces of the computer, with no software installation required
The devices are compatible with the ControlCenter-Digital and ControlCenter-Compact series (matrix operation) and other end devices for computer and workplace connections (extender operation)
Internal power pack for main power supply
CON-2 variant: console module with two transmission lines for redundancy
These modules can be connected to various counterparts, such as compatible computer modules or KVM matrix switches, whereby switching is carried out via pushbuttons, hotkeys or automatically, depending on the configuration
UC variant: computer module with two transmission lines for redundancy
These modules can be connected to various counterparts, such as compatible console modules or KVM matrix switches
MultiChannel variants (MC): Modules for multi-monitor workplaces with multi-channel video
MC mode uses the full bandwidth for each video channel, whereby a separate transmission line is required for each channel
