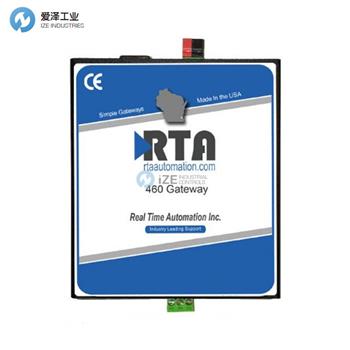

RTAutomation網關460ETCUSB-N70U技術規格
Specification | |
Ethernet Tag Client | |
PLC Support | ControlLogix, CompactLogix, FlexLogix, MicroLogix, SLCs and PLC5Es |
Maximum Number of PLCs Supported | 5 |
Maximum Number of Input/Output Tags or Files per PLC | 150 |
Maximum Number of Bytes per PLC Tag | 400 |
Array Support | Yes, for all data types except strings |
Supported Data Types | Usint, Sint, Uint, Int, Udint, Dint, Real, String, Bit Array 16, Bit Array 32, Bool, and Long |
USB | |
Operation Mode | Class 3 (HID) and Class 7 (Printer) |
Maximum Number of Devices Supported | 2 |
ASCII Device Interfaces | USB |
Maximum Number of ASCII Characters Transferred | 128 |
Delimiter Processing | Incoming delimiters can be automatically removed; Outgoing delimiters automatically added if configured |
Parsing | Parse string of ASCII data in up to 50 segments by delimiter or offset |
ELECTRICAL / ENVIRONMENTAL | |
DC Input Voltage | 8 VDC @ 230mA to 28 VDC @ 80 mA |
Maximum Baud Rate | 115K baud |
Operating Temperature | -40 C to 85 C |
Certification | RoHS-Compliant, UL, CUL, CE Approvals |
ENCLOSURE / HARDWARE | |
Size | 4.4" x 3.87" x 1.15" |
Weight | 8.5 oz |
Enclosure Type | Anodized Aluminum |
Mounting | Din rail or panel mount |
LEDs | Power LED, Ethernet link/data LED, Ethernet speed LED, & 2 USB LEDs |
RTAutomation網關460ETCUSB-N70U產品介紹
? 支持連接到五個 Allen-Bradley PLC
? 每個方向最多可映射 150 個標簽或文件數據數組
? 完全支持 USB 條碼掃描儀和打印機
? 在 USB 端口之間提供高達 1 安培的功率
? 基于瀏覽器的輕松配置，無需編程軟件
? 簡單的數據轉換允許您在協議之間傳遞數據時對其進行操作
? Supports connection to five Allen-Bradley PLCs
? Up to 150 tag or file arrays of data can be mapped in each direction
? Full support for USB Barcode scanners & printers
? Provides up to 1 amp of power between USB ports
? Effortless Browser Based Configuration, no programming software is required
? Simple data translation allows you to manipulate data as it passes between protocols
