ETHERWAN以太網交換機EX43000系列技術參數
Power | |
Input Voltage | ? 12 to 48VDC (Terminal Block) |
Power Consumption | 12VDC@4.34W |
Protection | ? Reverse polarity protection |
Mechanical | |
Casing | Aluminum case |
Dimensions | 43.6 x 110 x 135mm (W x D x H) |
Weight | ? 0.51Kg (1.12lbs) |
Installation | ? DIN-Rail (Top hat type 35mm) or Panel mounting |
Interface | |
Ethernet Ports | ? 10/100BASE-TX: 8 or 6 ports |
LED Indicators | |
? Per Unit: | Power 1 (Green), Power 2 (Green) |
? Per Port: | Link/Activity (Green) |
DIP Switches | ? Enable/Disable Port fault alarm |
Alarm Contact | ? One relay output with current 1A@250VAC |
Environment | |
Operating Temperature | -20 to 60°C (-4 to 140°F) |
Storage Temperature | ? -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | ? 5% to 95% (non-condensing) |

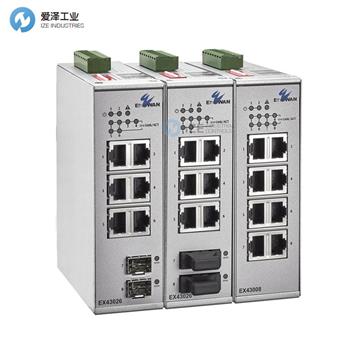

ETHERWAN以太網交換機EX43000系列產品介紹
EtherWAN's EX43000 Series is an industrial unmanaged Fast Ethernet switching platform, designed for easy deployment in industrial environments.
The EX43000 Series is equipped with eight Fast Ethernet ports, or a combination of Fast Ethernet copper ports and two 100FX ports for long distance connectivity. This versatile switch features 10/100Mbps transfer speeds, full/half-duplex auto-negotiation and auto MDI/MDIX operation allowing you to connect your network devices without hassles.
The EX43000 is feature-rich with full wire speed Fast Ethernet throughput, QoS (Quality of Service), IEEE802.3az EEE (Energy Efficient Ethernet) and Broadcast storm protection. The EX43000 Series is built with relay alarm to notify users when power fails or link down occurs. It also supports Broadcast storm protection by enabling the DIP switch. The EX43000 Series is housed with a DIN rail mountable metal compact case which is an ideal solution for network applications in harsh environments.
EtherWAN的EX43000系列是一種工業非托管快速以太網交換平臺，旨在輕松部署在工業環境中。
EX43000系列配備了八個快速以太網端口，或快速以太網銅纜端口和兩個100FX端口的組合，以實現長距離連接。這款多功能交換機具有10 / 100Mbps的傳輸速度，全/半雙工自動協商和自動MDI / MDIX操作，使您無需麻煩即可連接網絡設備。
EX43000具有豐富的功能，具有全線速的快速以太網吞吐量，QoS（服務質量），IEEE802.3az EEE（節能以太網）和廣播風暴防護。 EX43000系列內置繼電器警報功能，可在斷電或發生鏈路斷開時通知用戶。它還通過啟用DIP開關來支持廣播風暴保護。 EX43000系列裝有可安裝在DIN導軌上的金屬緊湊型外殼，是惡劣環境下網絡應用的理想解決方案。

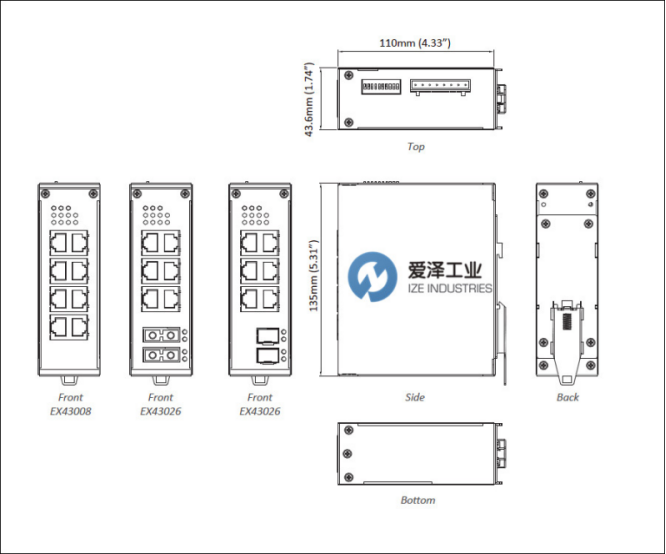

ETHERWAN以太網交換機EX43000系列尺寸圖
ETHERWAN以太網交換機EX43000系列其他型號：
ETHERWAN EX43008-00-1-AA
ETHERWAN EX43026-1A-1-AA
ETHERWAN EX43026-1B-1-AA
ETHERWAN EX43026-2A-1-AA
ETHERWAN EX43026-2D-1-AA
ETHERWAN EX43026-2E-1-AA
ETHERWAN EX43026-2G-1-AA
ETHERWAN EX43026-V-1-AA
ETHERWAN Ethernet switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ETHERWAN以太網交換機EX43026-2A-1-AA的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for ETHERWAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
ETHERWAN以太網交換機EX43000系列EX43026-2A-1-AA電氣及機械參數
