G&D交換機DVIMUX4-USB-RM產品參數
Technical data | ||
No. of video sources | per computer/console: | 1 |
Console | Connections per device: | 1 |
Interfaces for console | Video: | 1 × DVI-I jack |
Computer | Connections per device: | 4 |
Interfaces for computer | Video: | 4 × DVI-I jack |
Video | Signal type: | DVI-I (analog and digital video) |
Audio | Type: | analog |
Update | Mode: | local service jack socket |
Power supply | Type: | internal power pack |
Power input | Standby: | 9,3W@240VAC; 8,3W@100VAC |
Casing | Material: | anodised aluminium |
Operation environment | Temperature: | ﹢5 to +40 °C |
Conformity | CE, RoHs | |
G&D交換機DVIMUX4-USB-RM產品介紹
DVIMUX4-USB KVM切換器可以通過一個控制臺最多操作四臺計算機。
該控制臺配有USB鍵盤，USB鼠標以及數字和/或模擬監視器。連接到KVM切換器的計算機是從已安裝的控制臺操作的。
通過前面板的按鈕，可配置的組合鍵或連接到服務端口的串行設備，可以在計算機之間進行切換。
設備的前面板提供了兩個USB 2.0接口，用于操作任何USB設備。所連接的USB設備可用于任何活動計算機。
啟用USB保持功能后，可以將USB設備永久切換到已定義的計算機。切換KVM通道時，USB設備的切換保持不變。
The DVIMUX4-USB KVM switch enables you to operate up to four computers via one console.
The console is provided with a USB keyboard, a USB mouse and a digital and/or analog monitor. The computers connected to the KVM switch are operated from the installed console.
The switching between computers takes place either via the pushbuttons on the front panel, configurable key combinations, or a serial device which is connected to the Service port.
The front panel of the device provides two USB 2.0 interfaces to operate any USB devices. The connected USB devices are available to whichever active computer.
After enabling the USB hold function, the USB devices can be permanently switched to a defined computer. The switching of the USB devices remains the same when switching the KVM channel.

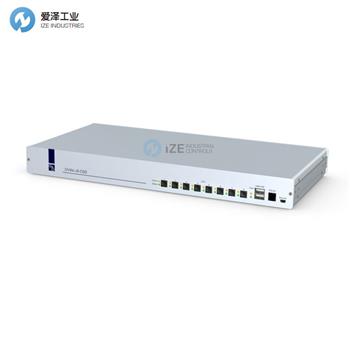

G&D交換機DVIMUX4-USB-RM
G&D交換機DVIMUX4-USB-RM其他常見型號：
G&D DVIMUX4-USB-RM
G&D DVIMUX4-USB
G&D DVIMUX4-MC2-USB
G&D DVIMUX4-MC2-USB-RM
G&D DVIMUX4-MC3-USB
G&D DVIMUX4-MC3-USB-RM
G&D DVIMUX4-MC4-USBG&D DVIMUX4-MC4-USB-RM
G&D KVM switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、交換機等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于G&D交換機DVIMUX4-USB-RM的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for G&D products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
