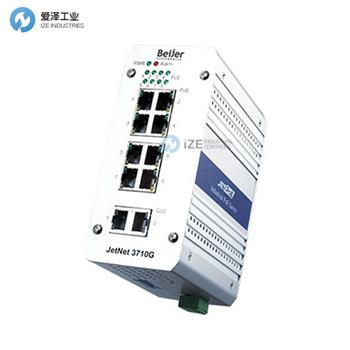

KORENIX交換機JetNet3710G產品描述
JetNet 3710G是一款工業PoE交換機，設計有8個快速以太網PoE端口和2個千兆上行端口，以確保大規模監控系統網絡的高帶寬上行連接。PoE注入端口每臺設備最多可提供65W*的電力，供PoE支持的設備使用。此外，JetNet 3710G采用鋁合金金屬外殼，緊湊的尺寸使其能夠在-25~70℃的寬溫范圍內可靠運行。
支持千兆帶寬和QoS
JetNet 3710G 配備8個PoE端口和兩個上行千兆以太網端口。客戶最多可以連接8個IP攝像機，并提供有保障的大圖像上行帶寬連接。此外，JetNet 3710G支持QoS，通過簡單調整數據傳輸?shù)膬?yōu)先級，確保視頻流傳輸?shù)母哔|(zhì)量。
提供故障繼電器功能
JetNet 3710G提供故障繼電器功能，當出現任何異常情況時可以自動警告用戶。因此，用戶可以快速處理緊急情況并縮短故障切換時間。
特點
八個10/100 TX PoE外加兩個10/100/1000TX上行端口
DC 48V輸入，提供8個端口PoE @48V
符合802.3af的PoE：總功率預算為65W*，每個端口最大15.4W
兩個千兆以太網端口用于更大的監控上行帶寬
支持QoS以優化視頻和VoIP流
故障繼電器用于端口故障的主動警告
-25~70℃工作溫度
JetNet 3710G is an Industrial PoE Switch designed with 8 Fast Ethernet PoE ports and 2 Gigabit uplink ports to ensure high-bandwidth uplink connection for large-scale surveillance system networks. The PoE injection ports can deliver up to 65W* per unit to power PoE-enabled devices. Moreover, the compact size with aluminum alloy metal enclosure allows JetNet 3710G to reliably operate under -25~70oC wide temperature range applications.
Gigabit bandwidth and QoS supported
JetNet 3710G features eight PoE ports and two uplink gigabit Ethernet ports. Customers can connect up to 8 IP cameras and provide guaranteed large image uplink bandwidth connection. In addition, the JetNet 3710G supports QoS to ensure the high quality of video traffic transmission by simply adjusting the priority of data transfer.
Fault Relay function provided
JetNet 3710G provides fault relay to automatically warn users if any abnormal situation occurs. As a result, users can quickly handle the emergency and shorten the failover time.
Features
Eight 10/100 TX PoE plus two 10/100/1000TX uplink ports
DC 48V input, deliver 8 port PoE @48V
802.3af compliant PoE: Total power budget is 65W* with max. 15.4W per port
Two gigabit Ethernet ports for larger uplink bandwidth of surveillance
Support QoS for optimizing video and VoIP stream
Fault relay for active warning of port failure
-25~70℃ operating temperature
