PROSOFT天線A072703S-OBH技術參數
Specifications | |
Frequency | 750 MHz to 2.7 GHz |
Gain | 3 dBi |
VSWR | 2:1 Max over range |
Operating Temp. | -40° to +85° C (-40° to 185° F) |
Nominal Impedance | 50 Ohms |
Maximum Power | 10 W |
Dimensions(H x W) | 3 x 1.7 in/7.6 x 4.3 cm |
Case Metal | ASA plastic, UV Resistant |
Hardware | Nut, lockwasher, and gasket |
Mounting Stud | 5/8 in (16 mm) diameter feed thru |
Pigtail Cable | RF-195, 5 foot |
Pigtail Connector | RP-SMA Plug |
PROSOFT天線A072703S-OBH產品介紹

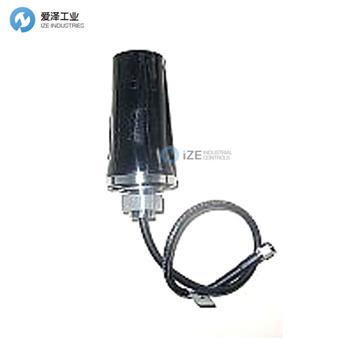

A072703S-OBH 是一款寬帶天線，能夠同時在 750 MHz 至 2.7 GHz 的全球頻段上運行，具有出色的響應性。它是一款堅固耐用的天線，非常適合室外或室內工業應用。該設計具有垂直和水平極化組件的場分集。這提供了天線分集、頻率捷變、低可見度、寬帶寬和低角度輻射模式，在大多數應用中優于傳統增益天線。它連接到 5 英尺低損耗 RF-195 RG 58 電纜和 RP-SMA 連接器。
特點和優點
? 同時對信號的電場和磁場敏感，就像有兩個天線一樣
? 可抵抗城市運行和起伏移動環境中的柵欄衰落和多徑零點
? IP67 全天候運行，適用于惡劣的條件
? 低調設計提供防水密封
The A072703S-OBH is a broadband antenna capable of simultaneous operation on worldwide bands from 750 MHz up to 2.7 GHz, with excellent response. It is a rugged style antenna and excellent for outdoor or indoor industrial applications. The design features field diversity with both vertical and horizontal polarization components. This provides the antenna diversity, frequency agility, low visibility, wide bandwidth, and a low angle radiation pattern that is superior to traditional gain antennas in most applications. It comes attached to 5 feet low loss RF-195 RG 58 cable with RP-SMA connector.
Features and Benefits
? Simultaneously sensitive to both electric and magnetic fields of signal, like having two antennas
? Resistant to the picket fence fading and multi-path nulls that are found in the urban operation and undulating mobile environments
? IP67 All-weather operation for the harshest conditions
? Low profile design provides watertight seal
