FEIG讀卡器LR5400技術參數
Technical data | ID LR5400 | ID LRM5400 |
Dimensions (w x h x d) | 320 mm x 180 mm x 110 mm | 160 mm x 120 mm x 46 mm |
Weight | approx. 1.9 kg | approx. 0.6 kg |
Color | black | n/a |
Protection class | P54 | n/a |
Operating frequency | 13.56 MHz | |
Transmitting power | 1 W–8 W (250 mW steps, software configurable) | |
Modulation | 10 % –30 % (software configurable) | |
Power supply | 24 V ± 15 %; Noise Ripple: max. 150 mV | |
Power consumption | typ. 35 VA /maximum 47 VA (depending on ext. output circuitry) | |
Antenna connection | 4 x SMA Jack (50 Ω) | |
DC Supply at antenna connectors | 8 V (max. 150 mA) | |
0utputs | 2 Optocoupler (24 V, 30 mA) | |
Inputs | 3 Optocoupler (5 V up to 24 V, 20 mA) | |
Interfaces | RS485, USB-Device, USB-Host, Ethernet (TCP/IP), (RS485 auxiliary devices) | |
Indicators, optical | 6 LEDs | |
Supported transponders | ISO 15683*, ISO 18000-3-A, ISO 18000-3M3 (Upgrade code required), NXP I-Code 1 | |
Protocol modes | ISO Host Mode, Buffered Read Mode, Notification Mode | |
Operation system | Embedded Linux | |
Others | Anticollision function, Real time clock, RSSI data readout | |
Temperature range | ||
0peration | ?20 °C up to +55 °C (?4 °F up to 131 °F) | |
Storage | ?25 °C up to +85 °C (?13 °F up to 185 °F) | |
Relative air humidity | 5 % up to 80 % (non-condensing) | |

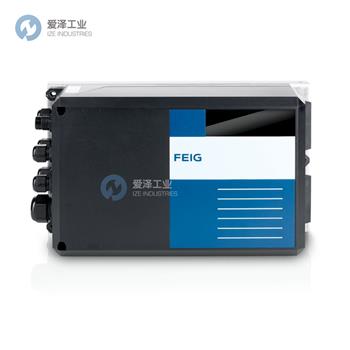

FEIG讀卡器 LR（M）5400 介紹
The 13.56 MHz high performance reader ID LR(M)5400 provides best sensitivity, stable reading and writing performance, best read range, fast reading speed at large transponder density and multiple antenna configurations.
The reader supports transponders according to ISO 15693, ISO 18000-3-A, ISO 18000-3M3 and NXP I-Code 1 RFID/NFC protocols and is best suited for applications such as libraries, laundries, casinos, logistics and industry.
Combined with FEIG’s external multiplexer, power splitter and antenna tuner, setups such as security gates, conveyors and antenna systems of various sizes can be realized easily.
Flexible interface options, configuration options and multiple reading modes allow trouble-free integration in professional TCP/IP networks.
13.56 MHz 高性能讀卡器ID LR(M)5400提供最佳靈敏度、穩定的讀寫性能、最佳讀取范圍、大應答器密度和多種天線配置下的快速讀取速度。
該閱讀器支持符合ISO 15693、ISO 18000-3-A、ISO 18000-3M3 和 NXP I-Code 1 RFID/NFC 協議的應答器，最適合圖書館、洗衣店、賭場、物流和工業等應用。
結合FEIG的外部多路復用器、功率分配器和天線調諧器，可以輕松實現各種尺寸的安全門、傳送帶和天線系統等設置。
靈活的接口選項、配置選項和多種讀取模式可實現在專業 TCP/IP 網絡中的無故障集成。
FEIG讀卡器其他常用型號：
FEIG LR5400
FEIG LRM5400
FEIG HF Proximity Reader NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FEIG讀卡器LR5400的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
