CCS壓力開關604G系列技術參數
Additional information | |
Environmental Approvals | IP65, NEMA 4, NEMA 13, NACE, RoHS |
Industry | Industrial |
Instrumentation | Pressure Switch |
Environment | Non-Hazardous |
Certification Agency Approvals | UL, CE, CRN, CCC |
Operating Temperature Range | -40° to 186 °F |
Process Connection Fitting Size | Female 1/4" NPT |
Process Connection Material | Aluminum |
Housing Enclosure | Aluminum |
Electrical Connection | Female 3/4" NPT |
Electrical Switch Type | SPDT |
Voltage Electrical Rating VAC | 0 to 250 VAC, 251 to 480 VAC |
Amperes Electrical Rating | 0.2 to 15 A |
Fixed or Adjustable Set Point | Adjustable |
Presetting | Factory Set, Not Factory Set |
Tagging | Mylar, Stainless Steel |
Accessories | Manifold |
Increasing Pressure Range | 1 to 16 PSIG, 8 to 75 PSIG, 20 to 150 PSIG, 50 to 375 PSIG, 330 to 1000 PSIG |
Decreasing Pressure Range | 0.3 to 15.3 PSIG, 22 to 347 PSIG, 265 to 935 PSIG, 3 to 70 PSIG, 8 to 138 PSIG |
Pressure Type | Gage |
Media | Oil Based, Non-Oil Based |
Increasing Pressure Ranges | 0 – 1.15 PSI, 1.16 – 2.99 PSI, 3 – 180 PSI, 180.01 – 3400 PSI |
Decreasing Pressure Ranges | 0 – 1.15 PSI, 1.16 – 173 PSI, 173.01 – 3180 PSI |
Maximum System Pressure | 500, 3000 |
Maximum Proof Pressure | 750, 5000 |
Process Connection Seal | O-Ring Sealed Diaphragm |
Diaphragm | Polyimide |
O-ring | Buna N |
CCS壓力開關604G系列介紹
604G系列是一種通用型全鋁壓力表開關。它的結構包括一個集成的端子盒和開關設計，并且設定點調整非常方便。該開關易于安裝在隔板上，并具有UL認證，以及NEMA 4和IP65等級防護。它利用Dual Snap碟形彈簧技術，具有高抗振動和抗沖擊性。適用于非危險環境的應用包括：
發電
鐵路車輛
流體管理
制造過程
公用事業、水處理和廢物處理
化學精煉和加工
重型車輛
安全系統

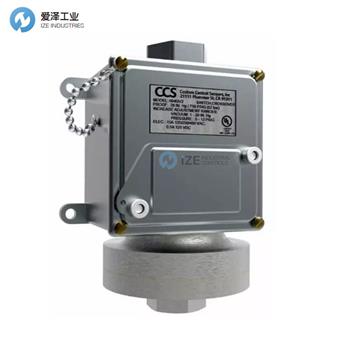

The 604G Series is a general purpose, all aluminum gage pressure switch. It is constructed with an integral terminal box and switch design and easy set point adjustment. It is also easily mounted to bulkheads and UL certified with NEMA 4 and IP65 rating. It has high vibration and shock resistance utilizing Dual Snap? disc spring technology. Applications include nonhazardous environments such as:
? Power Generation
? Rail Car
? Fluid Management
? Manufacturing Process
? Utilities, Water Treatment and Waste
? Chemical Refining and Processing
? Heavy Vehicles
? Safety Systems
CCS壓力開關604G系列其他常用型號：
CCS 604G1
CCS 604GM1
CCS 604G2
CCS 604G11
CCS 604G3
CCS 604G5
CCS 604GZ1
CCS 604GZM1
CCS 604GZ2
CCS 604GZ11
CCS 604GZ3
CCS 604GZ5
CCS 604GZ7
CCS SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CCS壓力開關604G1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CCS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
CCS壓力開關604G系列604G1技術參數介紹
