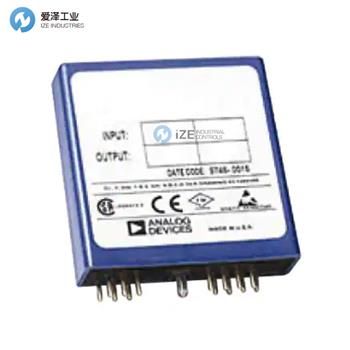

ANALOG DEVICES模塊5B34-02產品參數
Model | 5B34-02 |
Range | 0°C to +100°C (+32°F to 212°F) |
Output Range | 0 V to +5 V |
Accuracy | ±0.13°C |
ANALOG DEVICES模塊5B34-02產品介紹
5B系列代表了低成本、高性能插入式信號調節器的創新一代。這些模塊是為工業應用而設計的，集成了基于變壓器的高可靠性隔離和自動化表面制造技術。它們是緊湊、經濟的組件，其性能超過了更昂貴設備的性能。結合1500伏有效值連續隔離，+0.05%校準精度，小尺寸和低成本，5B系列是一個有吸引力的替代昂貴的信號調節器和內部設計
所有模塊均已封裝，插針和尺寸相同（2.27英寸x 2.32英寸x 0.595英寸）。它們可以混合和匹配，允許用戶滿足他們的確切需求，并且可以在不干擾現場布線或電源的情況下進行“熱插拔”。隔離輸入模塊提供0至+5V或+5V輸出，并接受J、K、T、E、R、S、N或B型熱電偶。
這些模塊具有完整的信號調節功能，包括240 V rms輸入保護、濾波、穩定低漂移+1 uV/oC放大、1500 V rms隔離和傳感器激勵（如需要）。
所有模塊均具有良好的共模抑制特性，并符合工業瞬態浪涌耐受規范。
The 5B Series represents an innovative generation of low cost, high performance plug-in signal conditioners. Designed for industrial applications, these modules incorporate highly reliable transformer-based isolation and automated surface- mount manufacturing technology. They are compact, economical components whose performance exceeds that available from more expensive devices. Combining 1500 V rms continuous isolation, +0.05% calibrated accuracy, small size and low cost, the 5B Series is an attractive alternative to expensive signal conditioners and in-house designs
All modules are potted and identical in pin-out and size (2.27” x 2.32” x 0.595”). They can be mixed and matched, permitting users to address their exact needs, and may be “hot swapped without disturbing field wiring or power. The isolated input modules provide 0 to +5V or +5V outputs and accept J, K, T, E, R, S, N, or B type thermocouples.
These modules feature complete signal conditioning functions including 240 V rms input protection, filtering, chopper stabilized low drift +1 uV/oC amplification, 1500 V rms isolation, and sensor excitation when required.
All modules feature excellent common mode rejection and meet industrial transient surge withstand specifications.
ANALOG DEVICES模塊5B系列其他常用型號：
ANALOG DEVICES 5B34-01
ANALOG DEVICES 5B34-02
ANALOG DEVICES 5B34-03
ANALOG DEVICES 5B34-04
ANALOG DEVICES 5B34-C-01
ANALOG DEVICES 5B34-C-02
ANALOG DEVICES 5B34-N-01
ANALOG DEVICES 5B34-Custom
