SIEB&MEYER變頻器SD4S技術參數
Voltage Class 50 V: | ||||||
Size | Mains voltage* | Output power[kW] | Apparent output power [kVA] | Output current [A] | Peak output current [A] | Availability |
B1 | 1 x 50 VAC | 0.3 kW | 0.7 kVA@16 kHz | 8 A@16 kHz | 14 A | available |
*Mains supply voltage range 45..60 VAC | ||||||
Voltage Class 230 V: | ||||||
Size | Mains voltage* | Output power[kW] | Apparent output power [kVA] | Output current [A] | Peak output current [A] | Availability |
B1 | 1 x 230 VAC | 0.8 kW | 1.6 kVA@16 kHz | 4 A@16 kHz | 14 A | available |
C1 | 1 x 230 VAC | 1.6 kW | 3.2 kVA@16 kHz | 8 A@16 kHz | 28 A | available |
D1 | 1 x 230 VAC | 2.4 kW | 6.4 kVA@16 kHz | 16 A@16 kHz | 28 A | available |
E1 | 3 x 230 VAC | 4.6 kW | 6.4 kVA@16 kHz | 16 A@16 kHz | 56 A | 2023 |
*Mains supply voltage range 99..253 VAC | ||||||
Voltage Class 400 V: | ||||||
Size | Mains voltage* | Output power [kW] | Apparent output power [kVA] | Output current [A] | Peak output current [A] | Availability |
D1 | 3 x 400 VAC | 4 kW | 5.5 kVA@16 kHz | 8 A@16 kHz | 24 A | 2023 |
E1 | 3 x 400 VAC | 8 kW | 11 kVA@16 kHz | 16 A@16 kHz | 56 A | 2023 |
H1 | 3 x 400 VAC | 24 kW | 33 kVA@16 kHz | 48 A@16 kHz | 64 A | 2023 |
K1 | 3 x 400 VAC | 48 kW | 66 kVA@16 kHz | 96 A@16 kHz | 120 A | 2023 |
*Mains supply voltage range 207..528 VAC |

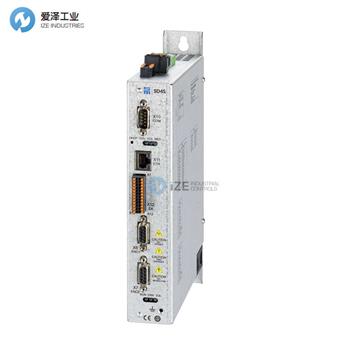

SIEB&MEYER變頻器SD4S產品介紹
SD4S 設備專為在機床、渦輪壓縮機和渦輪鼓風機的控制柜中固定使用而設計。
更好的性能和新的控制功能
首發的單元類型是為功率范圍從幾百瓦到 1 千瓦的小型高速主軸或電機設計的。應用領域包括牙科銑床或制表所需的超精加工機器。由于小型主軸在電機中沒有足夠的絕緣電阻，因此 SD4S 現在具有熱觸點的電流隔離。
新穎的是設計寬度僅為 40 毫米。特別是在多軸、低性能的應用中，對高度緊湊的驅動系統的需求很大。從而進一步減少了建筑體積。參數化是通過默認的以太網接口實現的，該接口取代了在工業環境中容易出現故障的 USB 接口。
此外，SD4S還帶有可編程的數字測量系統接口，如Biss-C、EnDat2.2和TTL。通過網絡服務器，技術人員無需額外的參數化軟件即可顯示設備信息。多虧了實時時鐘，事件的時間同步成為可能：用戶可以弄清楚故障是否是由雷暴等原因引起的。
優化的性能、更高的速度以及在沒有正弦波濾波器的情況下更低的電機發熱是 SD4S 的重要優勢。
The SD4S devices are designed for stationary use in control cabinets of machine tools, turbo compressors and turbo blowers.
Better Performance and New Control Functions
The first available unit type is designed for small high-speed spindles or motors in the power range from a few hundred watts to 1 kW. Application areas are e.g. dental milling machines or machines for super finishing as those required in watchmaking. Since small spindles do not come with a sufficient insulation resistance in the motors, SD4S now features a galvanic isolation of the thermal contact.
An absolute novelty is the design width of 40 mm only. Particularly in applications with many axes and a low performance, the demand for highly compact drive systems is great. Thus, the construction volume has been further reduced. The parameterization is realized via a default Ethernet interface that replaces the USB interface, which in industrial environments is prone to failure.
Moreover, SD4S comes with programmable digital measuring system interfaces such as Biss-C, EnDat2.2 and TTL. Via a Webserver, technicians can display device information without the need of additional parameterization software. Thanks to the real-time clock, a time synchronization of an incident is possible: Users can figure out whether a failure has been caused for example by a thunderstorm.
The optimized performance, higher speeds as well as the lower motor heating without sine-wave filter are substantial advantages of SD4S.
