SUCO壓力開關30 A/F系列規格
Technical data | |
Temperature stability for diaphragm / seal materials: | NBR -40 °C – +100 °C |
Switching frequency: | 200 / min |
Mechanical life expectancy: | 106 cycles (life expectancy of diaphragm pressure switches only for pressures up to max. 50 bar) |
Pressure rise rate: | ≤1 bar/ms |
Hysteresis: | Type 0159: approx. 10 – 30 % (not adjustable) |
Vibration resistance: | 10 g / 5 – 200 Hz sine-wave |
Shock resistance: | 294 m/s2; 14 ms half-sine-wave |
Body material: | Aluminium |
Degree of protection: | IP 65 socket device fitted |
Weight in grams: | Type 0159, 0161, 0162 approx. 240 g |
SUCO壓力開關30 A/F系列介紹

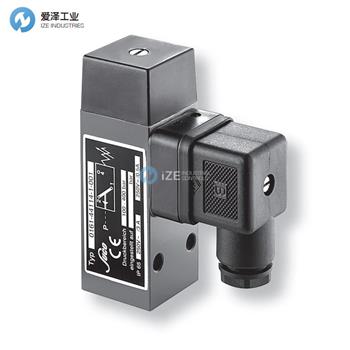

Pressure switches 30 A/F
Changeover switch
CE marking
SUCO pressure switches rated with an operating limit of 250 V are covered by the Low Voltage Directive 73/23/EC.
An EC Declaration of Conformity has been issued for these pressure switches and is on file at our offices. The corresponding switches bear the CE mark in our catalogue.
Mounting options for wall or manifold mounting enable easy, free-maintenance installation.
Easily user-adjustable switching point.
High overpressure safety.
Socket device allows easy assembly on site.
壓力開關 30 A/F
轉換開關
CE標志
額定工作電壓為 250 V 的 SUCO 壓力開關受低電壓指令 73/23/EC 的約束。
這些壓力開關已發布 EC 符合性聲明,并在我們的辦公室存檔。 相應的開關在我們的目錄中帶有 CE 標志。
墻壁或歧管安裝的安裝選項可實現輕松、免維護的安裝。
用戶可輕松調節的開關點。
高超壓安全性。
插座裝置便于現場組裝。
SUCO壓力開關其他型號:
SUCO 0161 436 14 1 001
SUCO 0161 437 14 1 001
SUCO 0161 438 14 1 001
SUCO 0161 439 14 1 001
SUCO 0161 440 14 1 001
SUCO 0161 441 14 1 001
SUCO 0161-43614-1-001
SUCO Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUCO壓力開關0161-43614-1-001的疑問,請隨時與我們電聯,(021-3100 6702),我們將盡全力解決您的問題。
If you have any question for SUCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
SUCO 壓力開關30 A/F系列0161-43614-1-001介紹
