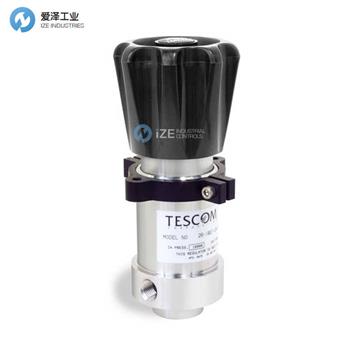

TESCOM壓力調節器26-1000系列技術參數
OPERATING PARAMETERS | |
Maximum Inlet Pressure | Stainless Steel: 10,000 psig / 690 bar |
Maximum Outlet Pressure | 5-500, 5-800, 10-1500, 15-2500, 25-4000, 50-6000, 200-10,000 psig |
Design Proof Pressure | 150% maximum rated |
Leakage | Bubble-tight |
Operating Temperature | -40°F to 165°F / -40°C to 74°C |
Flow Capacity | Standard: Cv = 0.06 |
MEDIA CONTACT MATERIALS | |
Body | 316 Stainless Steel or Brass |
Bonnet | 300 Series Stainless Steel |
40 Micron Filter | 300 Series Stainless Steel or Bronze |
Seat | Main Valve: Polyimide (Vespel?) |
Seals | Nitrile, Buna-N |
Back-Up Rings | PTFE |
Trim | 300 Series Stainless Steel |
OTHER | |
Cleaning | CGA 4.1 and ASTM G93 |
Weight (without gauges) | Stainless Steel: 5.5 lbs / 2.5 kg |
TESCOM壓力調節器26-1000系列介紹
26-1000 系列可控制高達 10,000 psig / 690 bar 的壓力。這種減壓調節器提供標準排氣，從而降低出口壓力。26-1000 系列具有可互換的彈簧和傳感器，以實現產品的多功能性。低扭矩把手易于調節。非常適合用于測試設備、校準臺和生產設備。
26-1000 Series controls pressures up to 10,000 psig / 690 bar. This pressure reducing regulator offers standard venting providing decreased outlet pressure. The 26-1000 Series has an interchangeable spring and sensor for product versatility. The low torque handknob is easy to adjust. Ideal for use in test equipment, calibration stands and production equipment.

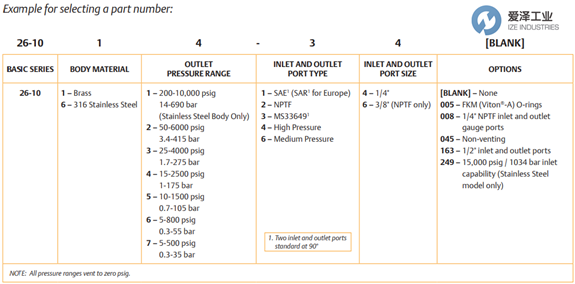

TESCOM壓力調節器26-1000系列選型
TESCOM壓力調節器26-1000系列其他常用型號：
TESCOM 26-1065-14-423
TESCOM 26-1065-28-045
TESCOM 26-106124
TESCOM Pressure Regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TESCOM壓力調節器26-106124的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
TESCOM壓力調節器26-1000系列26-106124技術參數及選型
