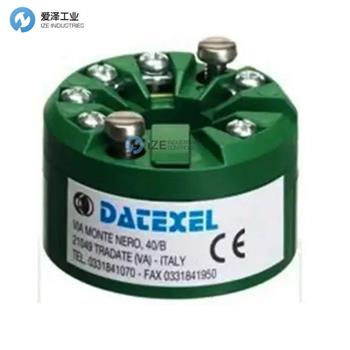

DATEXEL溫度變送器DAT1015技術參數
Input: | Thermocouples Type J, K, S, R, B, E, T and N. |
Output: | 4-20mA. |
Power Supply: | 10 to 32 Vdc |
Temperature rating: | Operative -4°F +158°F -20°C +70°C |
Humidity: | (non condensing) 0-90%. |
Housing: | Material self-extinguishing. |
Dimensions: | Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm |
Weight: | 3 oz 90 g. |
EMC. | For industrial environments. |
Configuration: | PC Configurable |
DATEXEL溫度變送器DAT1015產品介紹
經濟型 DAT1015 冰球溫度變送器是一種熱電偶頭戴式溫度變送器。輸入還接受 RTD、mV、電位器和電阻輸入。DAT1015“頭戴式溫度變送器”是PC可編程的。傳感器、范圍、歸零和線性化可通過 DATEXEL 提供的 Prodat 軟件進行編程。輸入經過測量、線性化并轉換為工業標準的 4-20mA 信號。RTD 和電阻輸入具有選擇 3 線或 4 線以提高精度的附加功能。有一個燒壞故障報警，可以編程驅動輸出信號高和低。
DAT1015 的輸入具有很高的容差范圍，DAT1015 可以接受 10 V 到 32 V 之間的任何電壓。電源是環路供電的 2 線設備。
熱電偶選擇類型為 J、K、S、R、B、E、T 和N。
RTD 傳感器可選擇 Pt100、Pt1000、Ni100 或 Ni1000。
電阻輸入可選擇 0-200、0-500、0-2000 歐姆。
mV 輸入可在 -100mV 至 700mV 范圍內選擇，最小跨度為 2 mV。
電位器可接受的電阻范圍為 0-200 歐姆、200-500 歐姆和 0.5 至 2 k 歐姆。
RTD 和電阻可以是 2 線或使用補償線來提高精度 IE 3 或 4 線?？梢赃x擇將 4-20mA 信號上的燒毀故障警報編程為高 (20mA) 或低 (4mA)。溫度變送器的電源具有很高的容差范圍，可以接受 10 到 32 V 之間的電壓。DAT1015 溫度變送器采用回路供電（2 線）。
The economical DAT1015 Hockey Puck Temperature Transmitter is a Thermocouple Head Mounted Temperature Transmitter. The input also accepts RTD's, mV's, Potentiometers and resistance Inputs. The DAT1015 "in head Mounted Temperature Transmitter" is PC Programmable. The sensor, range, zero and linearization are programmable with the Prodat software, available from DATEXEL. The input is measured, linearized and converted to the industrial standard of 4-20mA signal. The RTD and resistance input has the added feature of selecting 3 or 4 wire for higher accuracy. There is a burn out failure alarm that can be programmed to drive the output signal High and Low.
The input on the DAT1015 has a high range of tolerance and the DAT1015 can accept any voltage between 10 V and 32 V. The power is Loop Powered 2 wire device.
The thermocouple selection type is J, K, S, R, B, E, T and N.
The RTD sensor is selectable for Pt100, Pt1000, Ni100 or Ni1000.
The resistance input is selectable from 0-200, 0-500, 0-2000 Ohms.
The mV input is selectable from -100mV to 700mV with a minimum span of 2 mV.
The Potentiometer can accept resistance in the range of 0-200 Ohms, 200-500 Ohms and 0.5 to 2 k ohms.
The RTD and resistance can be 2 wire or use compensation wire to improve accuracy I.E. 3 or 4 wire. There is an option to program the burn out failure alarm on the 4-20mA signal to High (20mA) or Low (4mA). The power supply to the Temperature Transmitter has a high range of tolerance and can accept voltage between 10 and 32 V. The DAT1015 Temperature-Transmitter is Loop Powered (2 Wire).

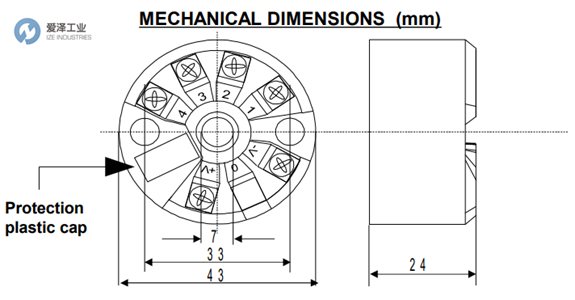

DATEXEL溫度變送器DAT1015技術尺寸

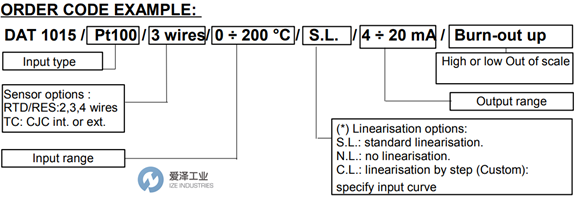

DATEXEL溫度變送器DAT1015系列選型
DATEXEL溫度變送器其他常用型號：
DATEXEL DAT1010
DATEXEL DAT1010IS
DATEXEL DAT1010ISHT
DATEXEL DAT1015
DATEXEL DAT1015IS
DATEXEL DAT1015ISHT
DATEXEL DAT1066
DATEXEL DAT1135
DATEXEL DAT1485
DATEXEL DAT1061
DATEXEL DAT1065IS
DATEXEL DAT1065ISHT
