AMETEK NCC除塵控制器DNC-T2610-010規格介紹
SPECIFICATIONS | |
CORE-10 | |
Supply: | 100-240VAC,50/60Hz,4VAmax.at240VACwithoutload |
Fuse: | 3Afast,5x20mm |
PressureSensorInput: | 4to20mA,sink/source,programmable10.0",15.0",25.0"w.c. |
PressureSwitchInput: | Drycontact,4mAat13VDCmax. |
CycleDownSwitchInput: | Drycontact,4mAat13VDCmax. |
OUTPUTS | |
SolenoidOutputs: | 10 |
OutputType: | Triac |
OutputRating: | 150VA(atmax.ON,min.OFF,1outputselected) |
TimingAccuracy: | -2mS,+10mSor+1%(whicheverisgreater),ON-timesynchronizedtoACline |
AlarmRelay: | Form-Acontact,3Aat250VAC/30VDC,programmablenormallyopenornormallyclosed |
DISPLAYINDICATORS | |
3-digit7-segmentLEDdisplay,0.56in.red | |
ProgramParameters/DisplayStatus/CANbus | |
Status: | 17greenLEDs |
Alarm: | 1red/yellowLED |
OutputStatus: | 1red/greenLED |
PARAMETERRANGES | |
ON-Time: | 0.050-600sec. |
OFF-Time: | 1-999sec. |
TimingAccuracy: | -2ms,+10msor+1%(whicheverisgreater),ON-timesynchronizedtoACline |
CycleDownCycles: | 1-20,none |
CycleDownDelay: | 60-600sec. |
PHighSetpoint: | 0-10/15/25"w.c.,none |
PLowSetpoint: | 0-10/15/25"w.c.,none |
PHighAlarm: | 0-10/15/25"w.c.,none |
PLowAlarm: | 0-10/15/25"w.c.,none |
COMMUNICATIONS | |
Type: | CANbusarchitecture |
Terminations: | Screwterminals,#12to#28AWG,fingersafe |
ENVIRONMENTAL | |
OperatingTemperature: | -40°Fto+150°F(-40°Cto+65°C) |
EnvironmentalProtection: | Conformalcoatingforhumidityandvibration |
AMETEK NCC除塵控制器DNC-T2610-010產品介紹

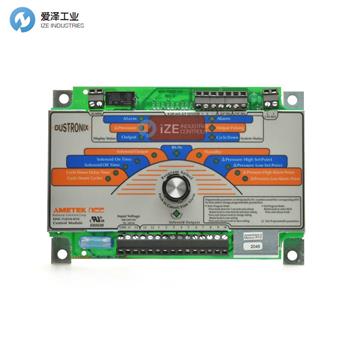

Core-10 和 Expander-10 除塵控制器
Core-10 是 Dustronix? 系列的旗艦控制模塊，它可以控制 1 到 10 個電磁閥輸出。通過 Expander-10 擴展板能夠輕松增加額外輸出?？梢栽趲缀跞魏我?guī)模的除塵系統中用于對脈沖清灰和其他功能進行復雜控制。
型號 DNC-T2610-010 和 020 為用戶提供對除塵系統的靈活控制，包括電磁閥的開關時間、循環下降次數、循環下降時間延遲、運行/待機、差壓設定值和報警，最多可達 990 個輸出。簡單的單鍵編程，狀態 LED 燈和清晰的三位數 LCD 顯示屏簡化了設置和操作。
主要特點
通過 2 線 CAN 總線網絡進行通信
通用輸入電壓 100-240 VAC，50/60 HZ
板載 10 個輸出，擴展至 990 個輸出（通過擴展板）
電磁閥電流監測加速設置并監控多達 2970 個電磁閥
LED 燈提供“一目了然”的狀態指示
可設置讀取 0-10、0-15 和 0-25 英寸的差壓
Core-10 and Expander-10 Dust Collector Controls
The flagship control module in the Dustronix? line, the Core-10 controls 1 to 10 solenoid outputs. Additional outputs can be added easily with Expander-10 expansion boards. They can be used for sophisticated control of pulse cleaning and other functions in dust collection systems of virtually any size.
Models DNC-T2610-010 and 020 give users flexible control over dust collection, including solenoid ON/OFF time, number of cycle-down cycles, cycle-down time delay, run/standby, differential pressure setpoints and alarms, and up to 990 outputs. Simple one-button programming, status LEDs, and a clear 3-digit LCD display simplify setup and operation.
Key Features
Communicates via 2-wire CAN Bus network
Universal input voltage 100-240 VAC, 50/60 HZ
10 outputs on-board, expands to 990 outputs (with expansion boards)
Solenoid current-sense speeds setup and monitors up to 2970 solenoids
LEDs give “at-a-glance” status indication
Settable to read 0-10, 0-15, and 0-25 inches of differential pressure
AMETEK NCC除塵控制器其他常用型號：
AMETEK NCC DNC-T2010-ADC
AMETEK NCC DNC-T2310
AMETEK NCC DNC-T2320
AMETEK NCC DNC-T2610-010
AMETEK NCC DNC-T2610-020
AMETEK NCC T2101
