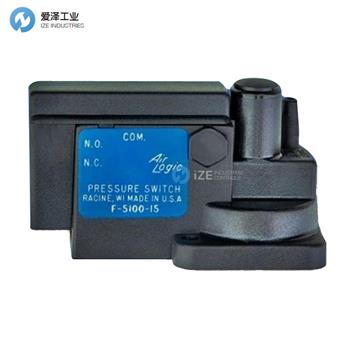

AIR-LOGIC壓力開關F5100-30FM技術參數
Specifications | |
Model | F-5100 |
Adjustment Range | 0.5 to 30 PSI |
Mounting Style | Flush Mount |
Port Connection | Barb for 1/16" I.D. Tubing |
Switch Selection | 15 AMP |
Features | Adjustment Cap included to protect adjustment screw |
Materials | Housing: Polysulfone |
Electrical Ratings | |
UL, CSA | 1 /2A 125 Vdc1/4 A 250 Vdc; 5 A 125 Vac “L”15.1 A 1/2 HP 125 Vac, 250 Vac or 277 Vac |
ENEC | N/A |
Additional Information | L = Incandescent lamp rating |
AIR-LOGIC壓力開關F-5100系列產品介紹
Standard pressure switch line with a variety of electrical ratings available. 15A and .1A are the most common versions and will typically have the shortest lead times. 15A is recommended for direct control of most current drawing devices. The .1A switch selection has gold plated contacts and is recommended for low amperage applications such as PLC and micro controlled interface. Other electrical options are available for specific application requirements.
Pressure switches apply signal pressure to a diaphragm that is opposed by a spring force. When then pressure signal force is greater than the spring force it reaches its set-point (also called “On” pressure), the internal mechanism moves and changes the electrical state.
When the switch trips, the normally open circuit closes and the normally closed circuit opens. The switch will remain in this state until the pressure signal drops below its reset point (also called “Off” pressure).
The difference between the “On” pressure and the “Off” pressure is defined as the Differential or Hysteresis of the switch. This is an important characteristic for applications such as pressure switch-controlled compressor systems. For instance, the consumption and capacity of the system along with the differential of the switch will determine how often the compressor runs.
標準壓力開關系列提供多種電氣額定值。15A和.1A是最常見的版本，通常交貨時間最短。建議使用15A直接控制大多數電流繪圖設備。.1A開關選擇具有鍍金觸點，建議用于低電流應用，例如 PLC 和微控制接口。其他電氣選項可用于特定應用要求。
壓力開關將信號壓力施加到由彈簧力抵抗的隔膜上。當壓力信號力大于達到其設定點的彈簧力（也稱為“開啟”壓力）時，內部機構移動并改變電氣狀態。
當開關跳閘時，常開電路閉合，常閉電路打開。開關將保持在此狀態，直到壓力信號降至其復位點以下（也稱為“關閉”壓力）。
“開”壓力和“關”壓力之間的差值定義為開關的差值或滯后。這是壓力開關控制的壓縮機系統等應用的一個重要特性。例如，系統的消耗和容量以及開關的差值將決定壓縮機運行的頻率。
AIR-LOGIC壓力開關F-5100系列其他常用型號：
AIR-LOGIC F510030FM.1B
AIR-LOGIC F510030FM3A
AIR-LOGIC F510030FM5A
AIR-LOGIC F510030FM10A
AIR-LOGIC F510030FM
AIR-LOGIC F510030FM25A
AIR-LOGIC F510030FMB85.1B
AIR-LOGIC F510030FMB853A
AIR-LOGIC Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AIR-LOGIC壓力開關F5100-30FM的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for AIR-LOGIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
