MESSKO指示器D1272AT規格
Technical Data | |
Input type | RTD Pt100 3-wire-technology acc. to IEC751 or 4 to 20mA (active or passive) |
Accuracy | <± 0,25% of the display range ±1 digit (at 20 °C, 60-70% rh) (<± 0.5°C at a measuring range of 160 °C) |
Supply Voltage | 100 - 240V AC ±10%, 50/60Hz, max. consumption 7.5VA |
Output Voltage | 20 - 28V DC (24V DC nominal) |
Ambient Temperatur | 0°C to +55 °C (Operation), -20°C to +80°C (Storage) |
Humidity | 20% - 95%, free of condensation |
Degree of protection | IP 66 at the front, IP 20 at the back (after panel mounting) |
Electrical safety | IEC/EN 61010-1, Protection class II |
MESSKO指示器D1272AT介紹

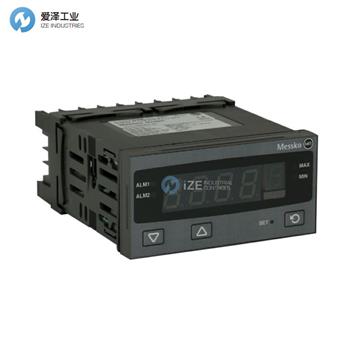

MESSKO? D1272AT
數字指示器
D1272AT數字指示器用于遠程顯示油或繞組溫度以及油位。它們安裝在控制面板中。顯示指示器與組合套管或ZT-F2.1的模擬輸出（Pt100或4-20 mA）連接，或直接與溫度計或油位指示器的模擬輸出（4-20 mA）連接?？蛇x配兩個可自由配置的限位觸點和用于信號范圍處理的各種輸出信號（0/4-20 mA, 0-5 V, 0-10 V）。
MESSKO? D1272AT
Digital indicator
D1272AT digital indicators are used for the remote display of the oil or winding temperature and the oil level. They are installed into control panels. The display indicators are connected with the analog output (Pt100 or 4-20 mA) of the combination sleeve or ZT-F2.1 or directly connected with the analog output (4-20 mA) of the thermometer or oil level indicator. As an option, two freely configurable limit contacts and various output signals (0/4-20 mA, 0-5 V, 0-10 V) for signal range processing can be selected.
MESSKO指示器其他常用型號：
MESSKO D1272AT
MESSKO indicator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MESSKO指示器D1272AT的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MESSKO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
MESSKO指示器D1272AT技術規格
