IRT驅動器AT2000系列技術參數
Technical data | ||
Supply voltage | VAC | 3x230 +10% -20% |
Supply frequency | Hz | 45 to 65 |
Environment temperature | °C | 0 to 60 |
Operating temperature at full power (from 45 ° C, reduction of the output current of 2% / ° C to 60 ° C) | °C | 0 to 45 |
Storage temperature | °C | -25 to +55 |
PWM switching frequency | kHz | 7.5 |
Differential input (setpoint) | V | +10 to -10 |
Reference range speed | 1/32768 | |
Speed loop bandwidth | Hz | max. 150 |
Current loop bandwidth | Hz | max. 2000 |
Dissipation capacity during braking with standards resistors | W | 250 |
Motor output maximum voltage | V | 3 x 220 |
Motor output frequency | Hz | 0 to 500 |
Incremental encoder simulation | ppr | 1 to 1024 |
Maximum theoretical speed. motor with resolver "speed one" | RPM | 7500 |
On threshold braking | VDC | 385 |
Threshold braking | VDC | 380 |
On threshold over voltage | VDC | 410 |
Threshold over voltage | VDC | 400 |
Threshold under voltage | VDC | 230 |
On threshold under voltage | VDC | 220 |
Serial transmission | Type | RS232 and/or USB |
Degree of protection | IP20 | |
Approximate weight | kg | 3,3 |
IRT驅動器AT2000系列介紹
AT 2000 小型系列功率級以具有競爭力的價格具有出色的控制特性。該產品涵蓋了從 2 到 7.5 KW 的標稱功率范圍，分為三種不同的型號，分別額定為 5 / 10 / 20 安培。
AT 2000 系列提供單軸或多軸應用所需的一切。強大且可靠的 IGBT 輸出級、集成制動電阻器、直流母線可通過多驅動器提高制動功率效率，STO（安全扭矩關閉）安全功能作為選項。
該產品幾乎與任何可用的旋轉、線性、同步和異步電機兼容。
The AT 2000 small series power stage features excellent control characteristics at competitive price. This product is covering a range of nominal power from 2 to 7.5 KW in three different models respectively rated for 5 / 10 / 20 Amps nominal.
Everything you need for a single or multi axis application is available in the AT 2000 series. Powerfull & Reliable IGBT output stage, integrated braking resistor, DC bus for enhanced braking power efficiency with multi-drives, STO (Safe Torque Off) safety functions as an option.
This product is virtually compatible with any rotary, linear, synchronous and asynchronous motors available.
IRT驅動器AT2000系列系列其他常用型號：

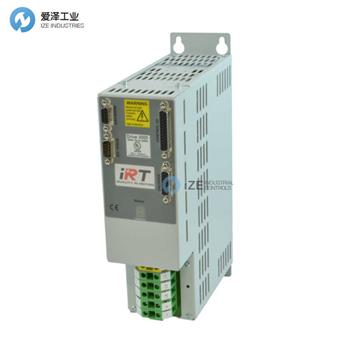

IRT S-AT2005
IRT S-AT2010
IRT S-AT2020
