C.E.SRL回訊開關CFIB-2-ME-05-ET技術參數
CFIB-2-ME-05-ET |
CFIB: Low Cover Version - Nr.3 3/4 "NPT. F Conduit Entries-Position Display in 3D (Standard) |
2: Nr.2 Sensors-Each with Nr.3 terminal when combined with SPST/SPDT contact or N ° 6 if with DPDT contacts |

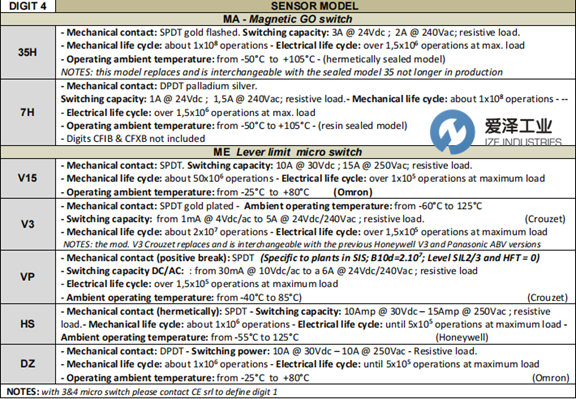

ME: Micro switch |

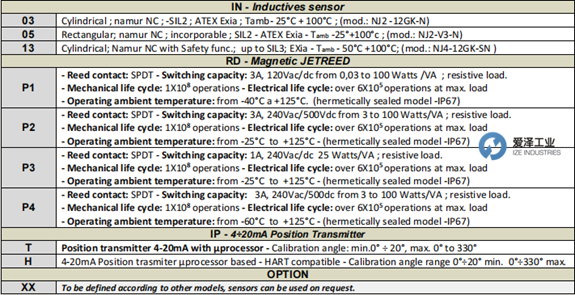

05: rectangle; Namur NC; incorporable; SIL2-ATEX Exia-Tamb-25 ° + 100 ° C; (Model: NJ2-V3-N) |

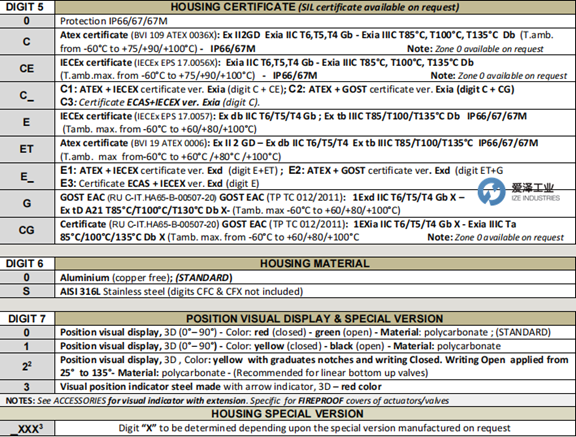

ET: ATEX Certificate (BVI 19 ATEX 0006): Ex II 2 GD-Ex DB IIC T6/T5/T4 Ex TB IIIC T85/T100/T135 ° C IP66/67/67M (T.AMB. Max from 60 ° C to + 60 ° C/+ 80 ° C/+ 100 ° C) |

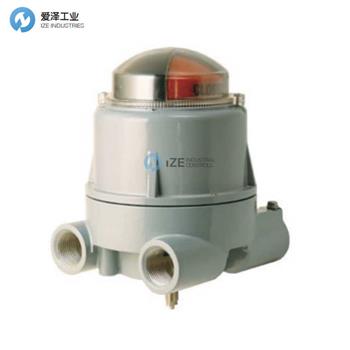

C.E.SRL閥門控制器CF系列產品介紹
材質：無銅鋁和316L不銹鋼
旨在簡化安裝和接線的解決方案
帶有2、3和4個電纜入口的版本，帶 ?” npt、?” npt、M20x1.5和M25x1.5 螺紋
從1到6個機械限位開關、REED 磁性元件、混合磁性元件和感應磁性元件
內部支持接線板和限位開關互連
適用于Exd和Exia區域的ATEX、IECEx 和 GOST EAC TR CU Ex認證
定位各種顏色的視覺指示器，專門用于防火保護
具有多種解決方案的擴展位置視覺指示器
它們可以在極端溫度的環境中使用
Material: copper-free aluminium and 316L stainless steel
Solutions designed to simplify installation and wiring
Versions with 2, 3 and 4 cable entries with ?” npt, ?” npt, M20x1.5 and M25x1.5 threads
From 1 to 6 mechanical limit switches, REED magnetics, hybrid magnetics and inductive magnetics
Internal support terminal boards and limit switch interconnection
ATEX, IECEx and GOST EAC TR CU Ex certifications for Exd and Exia areas
Position visual indicators of various colours and specific for FIREPROOF protection
Extended position visual indicators with multiple solutions
They can be used in environments with extreme temperatures
C.E.SRL閥門控制器CF系列選型
C.E.SRL閥門控制器CF系列其他常用型號：
C.E.SRL CFIB-2-ME-05-ET
C.E.SRL CFIB-1-MA-35H-C
C.E.SRL CFIB-2-RD-P5-ET-S
C.E.SRL CFIB-2-MA-35-E-0-0
C.E.SRL CFIB-2-MA-35-EX
C.E.SRL Feedback switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于C.E.SRL閥門控制器CFIB-2-ME-05-ET的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for C.E.SRL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
