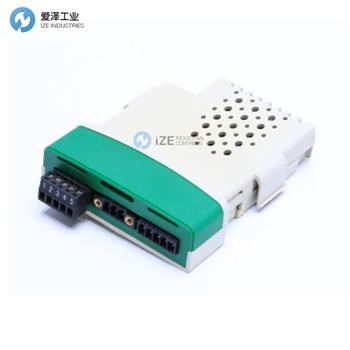

SM-Applications Plus
SM-Applications Plus is a high performance automation and motion controller with integrated fieldbus communications and high speed I/O. The module is configured using SyPTPro, an intuitive software tool that provides a rich automation programming environment, monitoring and debugging tools and CTNet network configurator for high speed, deterministic drive system communications.
Features include:
Real-time control - A key benefit of the SM-Applications Plus module is the real-time access to all of the drive’s parameters, plus access to data from I/O and other drives. The module uses a high speed multi-tasking operating system with task update times as low as 250μs. Tasks are synchronised to the drive’s own control loops to give the best possible performance for drive control and motion.
Inputs/Outputs - The module has two digital inputs and two digital outputs for high-speed I/O operations such as position capture and actuator firing.
Drive-to-drive communication - SM-Applications Plus modules include a high speed drive-to-drive network called CTNet. CTNet is optimised for intelligent drive systems offering flexible peer to peer communications. The bus has the capability to connect to remote I/O, operator panels, Unidrive SP, Affinity, Mentor MP and Mentor II drives and PCs using an OPC server.
High speed serial port - The module features a serial communications port supporting standard protocols such as Modbus for connection to external devices such as operator interface panels.
Drive Compatibility
This module operates with: Mentor MP, plus the following superseeded products: Unidrive SP, Commander SK and Affinity
SM-應用程序增強版
SM-Applications Plus 是一款高性能自動化和運動控制器，具有集成的現場總線通信和高速 I/O。該模塊使用SyPTPro進行配置，SyPTPro是一款直觀的軟件工具，可提供豐富的自動化編程環境、監控和調試工具以及 CTNet 網絡配置器，以實現高速、確定性驅動系統通信。
特點包括：
實時控制 - SM-Applications Plus 模塊的一個主要優點是實時訪問所有驅動器參數，以及訪問來自 I/O 和其他驅動器的數據。 該模塊采用高速多任務操作系統，任務更新時間低至250μs。任務與驅動器自身的控制環路同步，為驅動器控制和運動提供最佳性能。
輸入/輸出 - 該模塊具有兩個數字輸入和兩個數字輸出，用于高速I/O操作，例如位置捕獲和執行器啟動。
驅動器到驅動器通信 - SM-Applications Plus 模塊包括一個稱為 CTNet 的高速驅動器到驅動器網絡。CTNet 針對智能驅動系統進行了優化，提供靈活的點對點通信。該總線能夠使用OPC服務器連接到遠程 I/O、操作面板、Unidrive SP、Affinity、Mentor MP和Mentor II 驅動器以及PC。
高速串行端口 - 該模塊具有支持標準協議（例如 Modbus）的串行通信端口，用于連接到操作員界面面板等外部設備。
驅動器兼容性
該模塊可與：Mentor MP以及以下超級種子產品配合使用：Unidrive SP、Commander SK和 Affinity
