HONEYWELL模塊R8001A1001技術參數
Specifications | |
Electrical Ratings: | |
Input Voltage and Frequency: | 24 VDC (± 15%), |
Output Voltage: | 18 VDC (± 1 VDC) |
Power Dissipation: | 38W max @ 24V (approx. 12 modules), |
Fusing Total Connected Modules: | 5A, slow type, non-replaceable |
Environmental Ratings | |
Ambient Temperature: | Operating: -20°F to +150°F (-29°C to +66°C). |
Humidity: | 95% continuous, noncondensing. |
Vibration: | 0.5G environment |
Weight: | 2 lb 1 oz (0.94 Kg) |

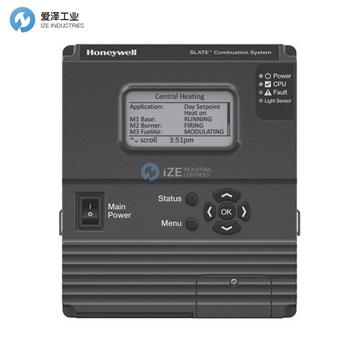

HONEYWELL模塊R8001A1001產品介紹
SLATE將可配置的安全性和可編程邏輯整合到一個平臺中。該平臺可以輕松地針對幾乎任何需求或應用進行定制-提供幾乎無限的開發機會，而復雜性要低得多。
R8001A1001基本模塊為SLATE系統提供通信和電源，為燃燒器控制，火焰安培，燃油空氣比和限制模塊提供可配置的安全性，并為數字和模擬I / O以及通知提供可編程邏輯。 SLATE是具有可配置安全性和可編程邏輯的燃燒系統。 該系統采用模塊化形式，可安裝在DIN導軌上。
SLATE brings configurable safety and programmable logic together into one single platform. The platform can easily be customized for almost any requirement or application—offering virtually limitless development opportunities with far less complexity.
The R8001A1001 base module provides communications and power supply for the SLATE system, configurable safety for Burner Control, Flame Amps, Fuel Air Ratio, and Limit modules, and programmable logic for Digital and Analog I/O, and Annunciation. SLATE is a combustion system with configurable safety and programmable logic. The system is modular in format and DIN rail mountable.
HONEYWELL模塊其他常用型號：
HONEYWELL R8001A1001
HONEYWELL R8801B2001
HONEYWELL R8001S1051
HONEYWELL R8001C6001
HONEYWELL R8001L8001
HONEYWELL R8001N7001
HONEYWELL R8001D4001
HONEYWELL RM8001K1010
