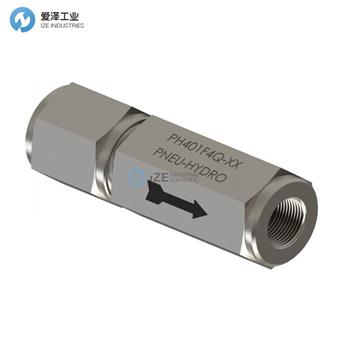

PNEU-HYDRO安全閥PH401F4Q系列技術參數
FUNCTIONAL DESIGN SPECIFICATION | |
Operating Pressure Range - Type 401 | 50 - 3,000 psi |
Operating Pressure Range - Type 402 | 3,000 – 10,000 psi |
Operating Temperature Range – Buna N Seals | -40° F to 250° F |
Operating Temperature Range – Viton Seals | -20° F to 400° F |
PNEU-HYDRO安全閥PH401F4Q系列介紹及選型
Gilmore’s Pneu-Hydro Inline Relief Valves remain bubble-tight up to cracking pressure. They reseal at less than 10% drop from cracking pressure in lower ranges, and less than 5% at higher ranges. Cracking pressure is reliable, repeatable, and easily set by an internal adjustment, which is tamper-proof once the valve is installed in the system.
Key Features
Wide set range from a single part number
Precise factory set relief pressure per customer specification
Relief pressure easily set by internal adjustment
Tamper proof adjustment
Smooth, chatter-free performance
Reliable and repeatable cracking and reseating pressures
Standard seal materials are Buna-N and Viton
Seal material selections are available for compatibility with virtually any fluid chemistry
Gilmore’s Pneu-Hydro Inline Relief Valves provide reliable performance in a compact package with a wide range of available relief set points.
Utilizing an elastomeric O-ring seal on the poppet and a metallic positive stop to carry the spring
pre-load, this simple design provides reliable settings, predictable performance, and prolonged service life. The standard valve is constructed of 316 stainless steel for strength and durability in the most corrosive applications.
Gilmore的Pneu-Hydro直插式溢流閥保持氣密性，直至達到破裂壓力。在較低范圍內，它們從裂化壓力下降不到10％，在較高范圍內，小于5％時重新密封。開啟壓力是可靠的，可重復的，并且可以通過內部調整輕松設置，一旦將閥門安裝到系統中，開啟壓力就可以防止篡改。
主要特點
單個零件號的設置范圍廣
根據客戶要求精確設定出廠壓力
安全壓力可通過內部調節輕松設置
防篡改調整
流暢，無顫音的表現
可靠且可重復的破裂和復位壓力
標準密封材料為Buna-N和Viton
密封材料的選擇可與幾乎所有流體化學物質兼容
Gilmore的Pneu-Hydro直插式溢流閥以緊湊的包裝形式提供可靠的性能，并具有多種可用的溢流設定點。
利用提升閥芯上的彈性O(shè)形圈密封和金屬限位擋塊承載彈簧
預加載時，這種簡單的設計提供了可靠的設置，可預測的性能以及延長的使用壽命。標準閥由316不銹鋼制成，在最腐蝕的應用中具有強度和耐用性。
PNEU-HYDRO安全閥PH401F4Q系列其他常用型號：
PNEU-HYDRO PH401F4Q-1,2
PNEU-HYDRO PH401F6Q-1,2
PNEU-HYDRO PH401F8Q-1,2
PNEU-HYDRO PH401M4Q-1,2
PNEU-HYDRO PH402F4Q- 2
PNEU-HYDRO PH402F8Q- 2
PNEU-HYDRO BALANCING VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PNEU-HYDRO安全閥PH401F4Q-1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PNEU-HYDRO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
PNEU-HYDRO安全閥PH401F4Q系列PH401F4Q-1介紹
