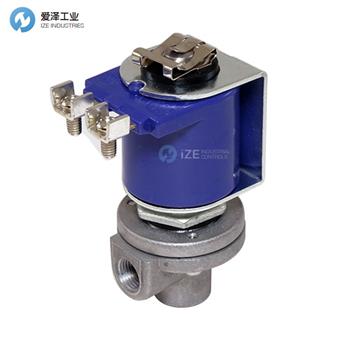

GOYEN電磁閥RCA3D0-330技術參數
MODEL | RCA3D0–330 |
CONNECTION TYPE | Screw / spade |
PROTECTION CLASS | NA |
VOLTAGE | 200/240V 50/60 Hz |
POWER | 17.4/22.6 VA |
GOYEN電磁閥介紹
Goyen電磁先導閥具有先導閥體和閥蓋，這些閥體和閥蓋由壓鑄鋁制成。它們設計用于在30kPa（5psi）至860kPa（125psi）的壓縮空氣歧管壓力下運行。
Mecair單遙控電磁先導閥由黃銅加工而成。它們設計用于在0.5 bar至7.5 bar的壓縮空氣歧管壓力下運行。
工業閥門通?？梢砸匀魏畏较虬惭b，但最好將螺線管安裝在閥門上方，以最大程度地減少灰塵和異物進入套圈管。安裝或拆卸閥門時，請注意不要將電磁閥蓋用作杠桿。為使操作可靠，請確保電源電壓不超過電磁閥額定電壓的15％。
Goyen solenoid pilot valves have pilot bodies and covers manufactured from pressure die cast aluminum. They are designed to operate with compressed air manifold pressures ranging from 30kPa (5psi) to 860kPa (125psi).
Mecair single remote solenoid pilot valves are machined from brass. They are designed to operate with compressed air manifold pressures ranging from 0.5 bar to 7.5 bar.
This industrial valves may generally be installed in any orientation, although it is preferable to mount the solenoid above the valve to minimize the ingress of dirt and foreign matter into the ferrule tube. Care should be taken not to use the solenoids cover as a lever when installing or removing the valve. For reliable operation, ensure the supply voltage is no more than 15 percent above or below the rated solenoid voltage.

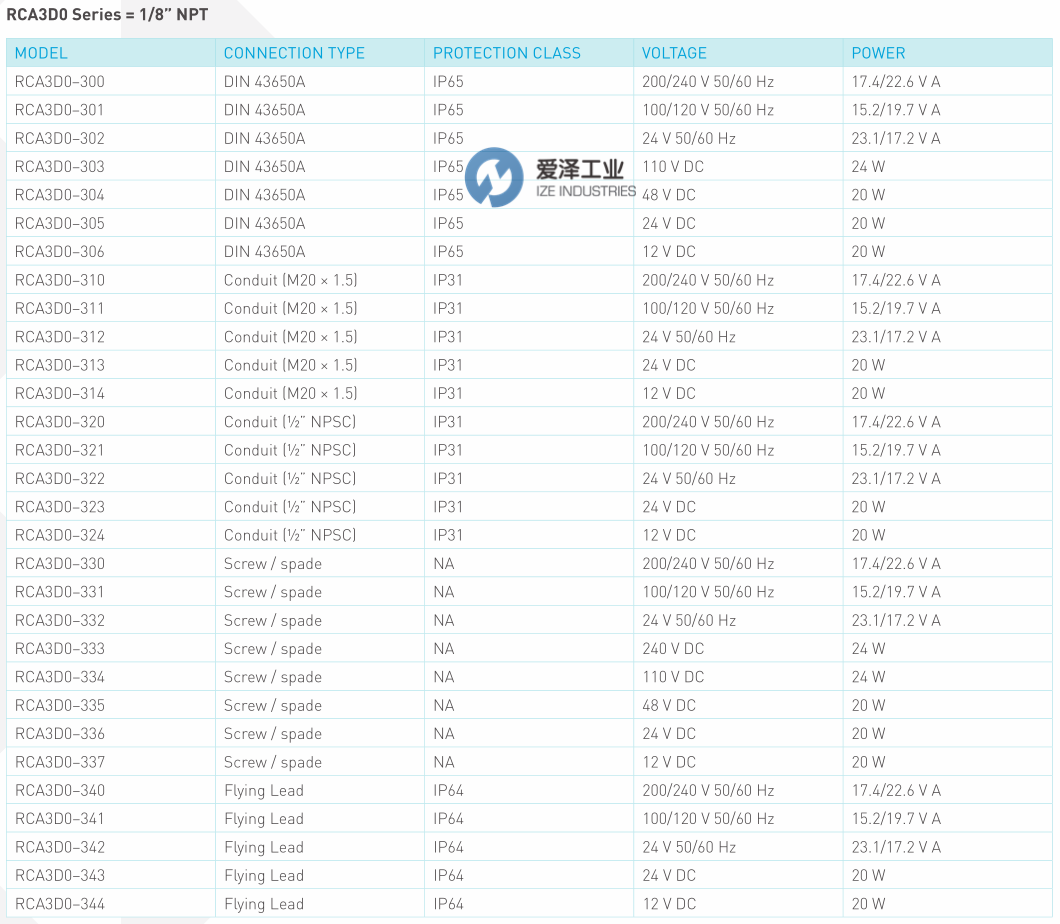

GOYEN電磁閥RCA3D0系列選型
GOYEN電磁閥RCA3D0系列其他常用型號：
GOYEN RCA3D0–300
GOYEN RCA3D0–301
GOYEN RCA3D0–302
GOYEN RCA3D0–303
GOYEN RCA3D0–304
GOYEN RCA3D0–305
GOYEN RCA3D0–306
GOYEN RCA3D0–310
GOYEN RCA3D0–320
GOYEN RCA3D0–330
GOYEN RCA3D0–340
GOYEN valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GOYEN電磁閥RCA3D0-330的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GOYEN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
GOYEN電磁閥RCA3D0-330選型介紹
