DUPLOMATIC閥E5P4系列技術參數
PERFORMANCE | ||
E5P4 | ||
Maximum operating pressure |
320 | |
Maximum flow rate from port P to A - B - T | l/min | 600 |
Ambient temperature range | °C | -20 / +50 |
Fluid temperature range | °C | -20 / +50 |
Fluid viscosity range | cSt | 10 ÷ 400 |
Fluid contamination degree | according to ISO 4406:1999 class 20/18/15 | |
Recommended viscosity | cSt | 25 |
Mass: E*P4-S, RK | kg | 15,6 |
DUPLOMATIC閥E5P4系列介紹
E5P4先導閥由一個四通液壓分配器組成，該分配器的安裝表面符合ISO 4401標準，由ISO 4401-03電磁換向閥控制。
它們以CETOP P05和ISO 4401-05尺寸制造，最大流量為150 l / min，以ISO 4401-08尺寸制造，最大流量為600 l / min。
它們可用于不同的閥芯類型，并且具有用于打開控制裝置的某些選項。
它們可用于X和Y方向的螺線管和液壓控制。
提供高壓（H）版本。
還可提供鋅鎳表面處理，以確保耐鹽霧性長達600小時。

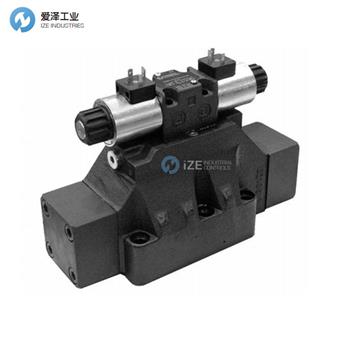

The E5P4 piloted valves are constituted of a 4-way hydraulic operated distributor with a mounting surface in accordance with the ISO 4401 standards, operated by a ISO 4401-03 solenoid directional valve.
They are made in CETOP P05 and ISO 4401-05 sizes with flow rates up to 150 l/min, and in ISO 4401-08 size with flow rates up to 600 l/min.
They are available with different spool types and with some options for the opening control.
They are available with both the solenoid and the hydraulic control from the X and Y ways.
A version for high pressures (H) is available.
It is available also with zinc-nickel surface treatments, that ensures a salt spray resistance up to 600 hours.

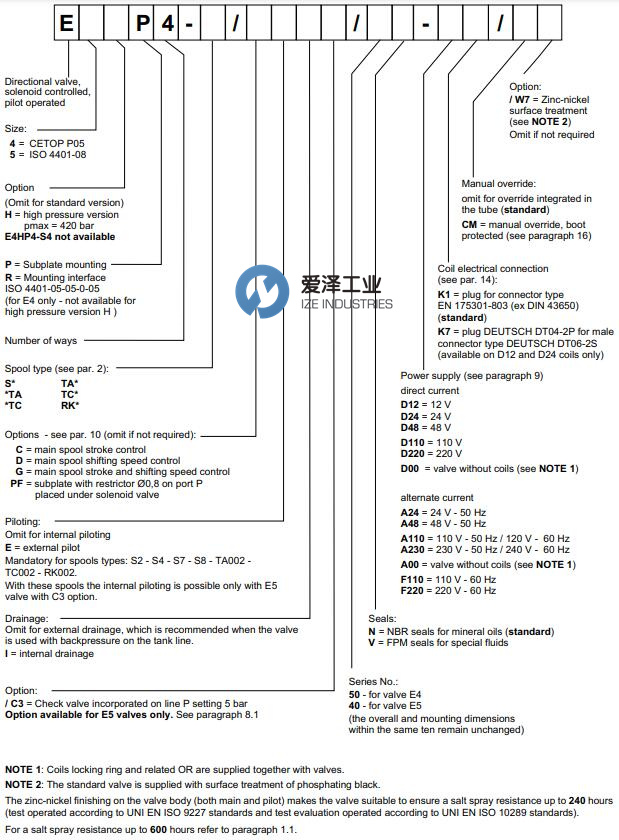

DUPLOMATIC閥E5P4系列選型
DUPLOMATIC閥E5P4系列其他常用型號：
DUPLOMATIC E5P4-S1/40N-A230K1/CM
DUPLOMATIC E5P4-TA/40N-A230K1/CM
DUPLOMATIC E5P4-S3/40N-A230K1/CM
DUPLOMATIC E5P4-S1/E/40N-D24K1
DUPLOMATIC E5P4-S12/PE/40N-D24K1
DUPLOMATIC E5P4-S1/40N-D24K1
DUPLOMATIC E5HP4-S1/E/40N-D24K1
DUPLOMATIC E5P4-TA/40N-A230K1
DUPLOMATIC E5P4-TA/C-Z-I/40N-A230K1/CM
DUPLOMATIC E5P4-S4/D-E/40N-D24K1
DUPLOMATIC E5P4-TA/EI/40N-D220K1/CM
DUPLOMATIC E5P4-S3/G/40V-D24K1
DUPLOMATIC E5P4-S7/E/40N-A230K1
DUPLOMATIC E5P4-S1/I/40N-A110K1/CM
DUPLOMATIC E5P4-S3/D-E/40N-D24K1/CM
