AVENTICS換向閥HF03-5/2SR-024DC 0820055051技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 850 l/min |
Working pressure min. | -0.9 bar |
Working pressure max | 10 bar |
DC operating voltage | 24 V |
Voltage tolerance DC | -15% / +20% |
Manual override | with detent |
Actuating control | Single Solenoid |
Sealing principle | Soft Seal |
Pilot | External |
Certificates | UR (Underwriters Laboratories) |
Pilot valve width | 16 mm |
Valve type | Spool valve, positive overlapping |
Connection type | Plate connection |
Blocking principle | Single base plate principle |
Control pressure min. | 2.5 bar |
Control pressure max. | 10 bar |
Min. ambient temperature | 0 °C |
Max. ambient temperature | 50 °C |
Min. medium temperature | 0 °C |
Max. medium temperature | 50 °C |
Medium | Compressed air |
Max. particle size | 5 μm |
Oil content of compressed air min. | 0 mg/m3 |
Oil content of compressed air max. | 5 mg/m3 |
AVENTICS換向閥HF03-5/2SR-024DC 0820055051產品介紹

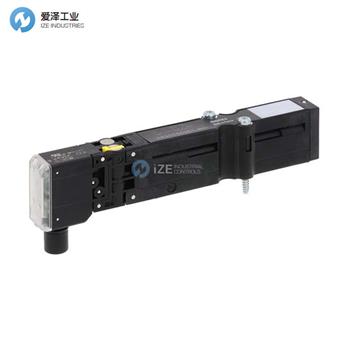

AVENTICS? 5/2 換向閥，HF03-LG系列，0820055051
特征
模塊化設計，最多 32 個閥和 32 個線圈
高達 850 升/分鐘的高流量
先導閥，每個線圈 0.35 W
由于采用塑料底板和端板，重量得到優化
直接安裝在裝配系統型材上
通過 Multipol 或 Fieldbus 連接的高連接性
集成配件和所有連接都指向一個方向
AVENTICS? 5/2-directional valve, Series HF03-LG 0820055051
Features
Modular design with up to 32 valves and 32 coils
High flow rate with up to 850 l/min
Pilot valve with 0.35 W per coil
Optimized weight due to plastic base and end plates
Direct mounting on assembly system profiles
High connectivity through Multipol or Fieldbus connection
Integrated fittings and all connections pointed in one direction
AVENTICS換向閥HF03-LG系列其他常用型號：
AVENTICS HF03-5/2SR-024DC 0820055051
AVENTICS HF03-5/2SR-024DC 0820055052
AVENTICS HF03-5/2DS-024DC 0820055501
AVENTICS HF03-5/2AR-024DC 0820055001
AVENTICS HF03-5/2AR-024DC 0820055002
AVENTICS HF03-3/2CC-024DC 0820055101
AVENTICS HF03-3/2CC-024DC 0820055102
AVENTICS HF03-3/2OO-024DC 0820055201
AVENTICS HF03-3/2OO-024DC 0820055202
AVENTICS HF03-3/2OC-024DC 0820055301
AVENTICS HF03-3/2OC-024DC 0820055302
AVENTICS Directional Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
