CONTEC模塊DIO-0808LY-USB技術參數
擴展模塊 | |
總線規格 | USB 2.0 |
類型 | Y Type |
所用連接器 | 2x Screw terminal block 14-pin |
數字信號輸入和輸出 | |
輸入點數 | 8-ch |
輸出點數 | 8-ch |
雙向輸入輸出點數 | - |
響應時間（輸入） | 300μsec (max.) |
響應時間（輸出） | 300μsec (max.) |
工作電壓（輸入） | 12 to 24VDC |
工作電壓（輸出） | 12 to 24VDC |
輸入電路 | Opto-isolated input (for sink current output) |
輸出電路 | Opto-isolated open-collector output (sink current type) |
內置外部電路用電源 | - |
CONTEC模塊介紹
This product is a USB 2.0-compatible digital I/O terminal, which can be connected to a USB interface of a PC to input and output digital signals (12 - 24 VDC) easily. Input up to eight channels and also output up to eight channels. Using bundled driver library [API-USBP(WDM)], you can create Windows application software for this terminal in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++.
Compatible to USB1.1/USB2.0 and not necessary to power this product externally as the bus power is used.
Compatible to USB1.1/USB2.0 and capable to achieve high speed transfer at HighSpeed (480 Mbps).
Opto-coupler bus isolation
As the USB (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance.
Windows compatible driver libraries are attached.
Using the attached driver library API-USBP(WDM) makes it possible to create applications of Windows. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
Easy-to-wire terminal connector adopted
Adoption of terminal connector (with screws) enables to achieve easy wiring.
本產品是兼容USB 2.0的數字I / O端子，可以將其連接到PC的USB接口，以輕松輸入和輸出數字信號（12-24 VDC）。輸入最多八個通道，也最多輸出八個通道。使用捆綁的驅動程序庫[API-USBP（WDM）]，可以使用您喜歡的支持Win32 API功能（例如Visual Basic或Visual C ++）的編程語言為該終端創建Windows應用程序軟件。
兼容USB1.1 / USB2.0，由于使用了總線電源，因此無需從外部為該產品供電。
兼容USB1.1 / USB2.0，并能夠以高速（480 Mbps）實現高速傳輸。
光耦合器總線隔離
由于USB（PC）通過光耦合器與輸入和輸出接口隔離，因此該產品具有出色的噪聲性能。
Windows兼容的驅動程序庫已附加。
使用附帶的驅動程序庫API-USBP（WDM）可以創建Windows應用程序。另外，提供了診斷程序，通過該程序可以檢查硬件的操作。
易于接線的端子連接器
通過使用端子連接器（帶螺釘）可以輕松進行接線。

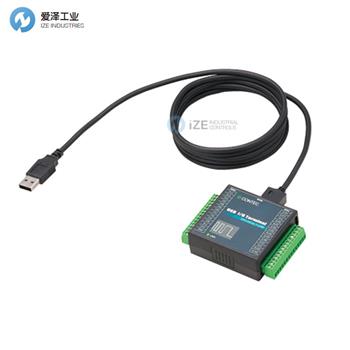

DIO-0808LY-USB
數字量輸入輸出 USB 模塊 8點/8點 (光電隔離 12-24VDC) - Y系列
兼容USB1.1 / USB2.0，由于使用了總線電源，因此無需從外部為該產品供電。
光耦合器總線隔離
Windows兼容的驅動程序庫已附加。
易于接線的端子連接器
Compatible to USB1.1/USB2.0 and not necessary to power this product externally as the bus power is used.
Opto-coupler bus isolation
Windows compatible driver libraries are attached.
Easy-to-wire terminal connector adopted
