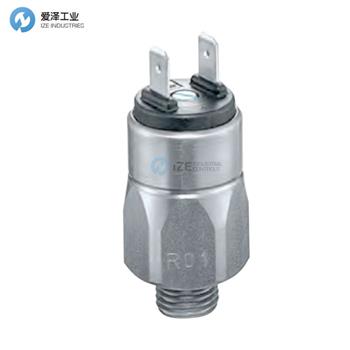

SUCO壓力開關0166-40702-1-026規格
Product | Pressure switch |
Code on package | 0166-40702-1-026 |
Adjustment range | 1-10 bar (±0,5) |
Pmax | 300 bar |
Body | Zinc-plated steel |
Diaphragm / Seal | NBR |
Fluids * | Hydraulic oil, mineral oil, air, nitrogen, etc. |
Temperature range | -40°...+100°C |
Thread | Ext. M12x1,5 cyl. |
Max. voltage | 42 V |
Contacts | NO |
Connection | Spade terminals (Faston) |
Hysteresis | Not adjustable |
Other | - |
Height [mm] | 55 |
Diameter [mm] | 27 |
Weight [gr] | 90 |
SUCO壓力開關0166-40702-1-026產品介紹及技術參數
Most cost-effective solution for mechanical pressure monitoring
Stable switching point even after long use and high load
Switching point can be adjusted when fitted on site 1)
High pressure resistance, compact, small switches, available as normally closed (NC) or normally open (NO)
For solutions with integrated connectors please refer to chapter
用于機械壓力監控的最具成本效益的解決方案
即使長時間使用和高負載也能保持穩定的開關點
現場安裝時可以調節開關點1)
耐高壓,緊湊,小型開關,有常閉(NC)或常開(NO)可供選擇
有關帶有集成連接器的解決方案。

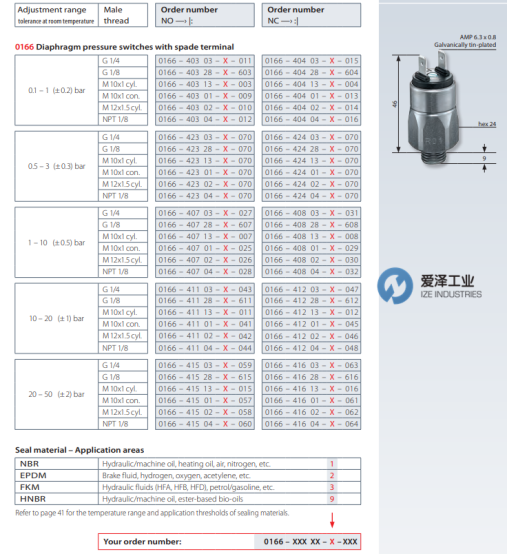

SUCO壓力開關其他型號:
SUCO 0166–40703–X–027
SUCO 0166–40728–X–607
SUCO 0166–40713–X–007
SUCO 0166–40701–X–025
SUCO 0166–40702–X–026
SUCO 0166–40704–X–028
SUCO 0166–40803–X–031
SUCO 0166–40828–X–608
SUCO 0166–40813–X–008
SUCO 0166–40801–X–029
SUCO 0166–40802–X–030
SUCO 0166–40804–X–032
SUCO 0166-40702-1-026
SUCO Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUCO壓力開關0166-40702-1-026的疑問,請隨時與我們電聯,(021-3100 6702),我們將盡全力解決您的問題。
If you have any question for SUCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
