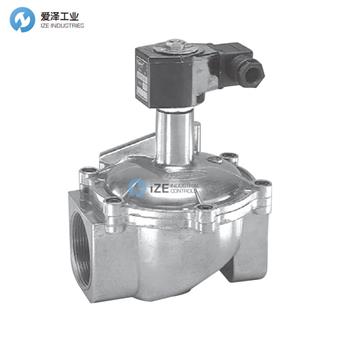

JEFFERSON電磁閥2030系列規格描述
specifications | ||||||
? Connection | ? Passage mm. | Kv. Coef. m3/h | Differential pressure bar | Weight in kg. | Catalog No | |
Minimum | Maximum | |||||
Normally closed - Direct acting | ||||||
1” | 32 | 10 | 0 | 0,05 | 0,98 | 2030LA08 |
1,1/4” | 32 | 12 | 0,05 | 0,85 | 2030LA10 | |
Normally closed - Servo diaphragm - Quick opening | ||||||
1,1/2” | 48 | 35 | 0,001 | 0,5 | 1,83 | 2030LA12 |
2” | 51 | 43 | 1,61 | 2030LA16 | ||
Normally closed - Servo diaphragm - Slow opening | ||||||
1,1/2” | 48 | 35 | 0,001 | 0,5 | 1,88 | 2030LA12L |
2” | 51 | 43 | 1,66 | 2030LA16L | ||
Normally closed - Reinforced servo diaphragm | ||||||
1,1/2” | 45 | 35 | 0,01 | 2 | 1,83 | 2030LAR12 |
2” | 45 | 43 | 1,61 | 2030LAR16 | ||
Normally open - Servo diaphragm | ||||||
1,1/2” | 48 | 35 | 0,001 | 0,5 | 1,83 | 2030LA12NA |
2” | 51 | 43 | 1,61 | 2030LA16NA | ||
Normally open - Reinforced servo diaphragm | ||||||
1,1/2” | 45 | 35 | 0,01 | 2 | 1,83 | 2030LAR12NA |
2” | 45 | 43 | 1,61 | 2030LAR16NA | ||
JEFFERSON電磁閥2030系列產品簡介
常閉常開。直接作用或伺服隔膜版本。注射鋁體。
不銹鋼或鋁合金鑄造閥蓋。BSP或NPT螺紋連接。
丙烯腈密封和隔膜。
密封線圈。DIN43650連接。IP65和NEMA 4保護。
快速或慢速開啟可調節至10秒。。在不到1秒內關閉。
用于關閉閥門驗證的可選微觸點。
Normally closed and normally open. Direct acting or servo diaphragm versions. Injected aluminium body.
Stainlesssteeloraluminiumdie-castbonnet. BSP or NPT threaded connections.
Acrylo-nitrile seatsanddiaphragm.
Encapsulated coil. DIN 43650 Connection. IP65 and NEMA 4 Protection.
Quick or slow opening adjustable up to 10 sec.. Closure in less than 1 second.
Optional microcontact for closed valve verification.
JEFFERSON電磁閥2030系列其他常用型號：
JEFFERSON 2030LA08
JEFFERSON 2030LA10
JEFFERSON 2030LA12
JEFFERSON 2030LA16
JEFFERSON 2030LA12L
JEFFERSON 2030LA16L
JEFFERSON 2030LAR12
JEFFERSON 2030LAR16
JEFFERSON 2030LA12NA
JEFFERSON 2030LA16NA
JEFFERSON 2030LAR12NA
JEFFERSON 2030LAR16NA
