COPLEY CONTROLS直流電驅動器BPL-090-14產品參數

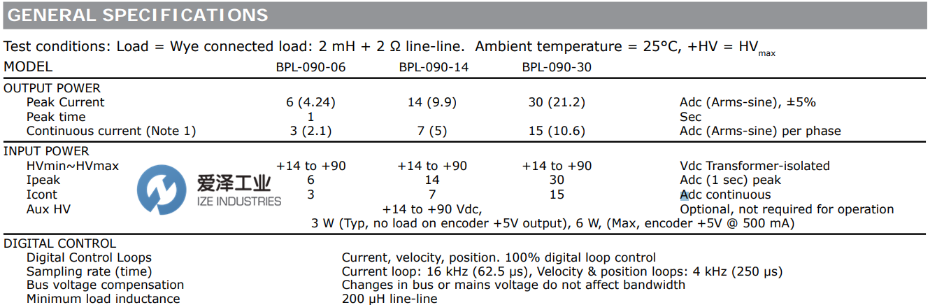

SPECIFICATIONS | |
Peak Current | 14 (9.9) |
Peak time | - |
Continuous current (Note 1) | 7 (5) |
HVmin~HVmax | +14 to +90 |
Ipeak | 14 |
Icont | 7 |
Aux HV | +14 to +90 Vdc, 3 W (Typ, no load on encoder +5V output), 6 W, (Max, encoder +5V @ 500 mA) |
Digital Control Loops | Current, velocity, position. 100% digital loop control |
Sampling rate (time) | Current loop: 16 kHz (62.5 μs), Velocity & position loops: 4 kHz (250 μs) |
Bus voltage compensation | Changes in bus or mains voltage do not affect bandwidth |
Minimum load inductance | 200 μH line-line |
COPLEY CONTROLS直流電驅動器BPL系列產品介紹
BPL是一種高性能的直流電驅動器，可通過CANopen對無刷和有刷電機進行位置，速度和轉矩控制。使用在Windows?下運行并通過RS-232與BPL進行通信的CME 2?軟件，可以快速簡便地進行驅動器調試。
BPL用作CANopen DS-402節點。支持的模式包括：縱斷面位置-速度-扭矩，內插位置模式（PVT）和歸位。
支持增量編碼器和絕對編碼器的反饋。根據驅動器的基本設置，多模式編碼器端口可以用作輸入或輸出。
有七個非隔離輸入。所有輸入都有可編程的活動電平。三個光電隔離輸出[OUT1?3]具有單獨的+/-連接。隔離的MOSFET制動輸出[OUT4]可進行編程，以驅動電動機制動或其他功能，并具有一個與制動24V輸入相連的反激二極管，用于驅動感性負載。
驅動器電源是來自穩壓或非穩壓電源的變壓器隔離的DC。 AuxHV輸入用于“保持活動”操作，允許驅動功率級完全斷電，而不會丟失位置信息或與控制系統的通信。
The BPL is a high-performance, DC powered drive for position,velocity, and torque control of brushless and brush motors via CANopen. Drive commissioning is fast and simple using CME 2? software operating under Windows? and communicating with the BPL via RS-232.
The BPL operates as a CANopen DS-402 node. Supported modes include: Profile Position-Velocity-Torque, Interpolated Position Mode (PVT), and Homing.
Feedback from both incremental and absolute encoders is supported. A multi-mode encoder port functions as an input or output depending on the drive’s basic setup.
There are seven non-isolated inputs. All inputs have programmable active levels. Three opto-isolated outputs [OUT1~3] have individual +/- connections. An isolated MOSFET brake output [OUT4] is programmable to drive motor brakes or other functions and has a flyback diode to the Brake 24V input for driving inductive loads.
Drive power is transformer-isolated DC from regulated or unregulated power supplies. An AuxHV input is provided for“keep-alive” operation permitting the drive power stage to be completely powered down without losing position information, or communications with the control system.

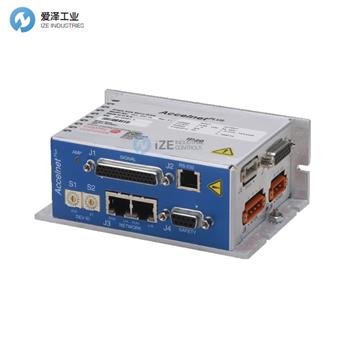

COPLEY CONTROLS直流電驅動器BPL-090-14
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件COPLEY CONTROLS 直流電驅動器部分型號：
COPLEY CONTROLS BPL-090-06
COPLEY CONTROLS BPL-090-14
COPLEY CONTROLS BPL-090-30
COPLEY CONTROLS BRUSHLESS MOTORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于COPLEY CONTROLS直流電驅動器BPL-090-14的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for COPLEY CONTROLS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
