KITZSCT閥VLD4CS-VFC-EP-316L產品參數
Dimensions | |
Type | VLD4CS-VFC-EP-316L |
End Connection | 1/4" CVC Female |
L | 3.27(83.0) |
L1* | - |
H | 3.31(84.0) |
H1 | 0.63(16.0) |
A | 2.17(55.0) |
B | 1.42(36.0) |
C | 1.42(36.0) |
P | Rc1/8 |
M | 1.10(28.0) |
M1 | 2-M5 Depth 0.20 (5.0) |
Model |
|
Specifications | ||
Size | VLD4 (1/4") | |
Cv | 0.27 | |
Maximum Operating Pressure | 0.98MPa (G) | |
Wetted area Valume | 1.2cm3 | |
Fluid Temperature | PCTFE | -10oC~80oC |
PFA(Manual) | -10oC~150oC | |
PI(Manual) | -10oC~150oC | |
Leak Rates | Across the Seat He Leak Test Rates | ≤ 1×10-10Pa·m3/sec |
Inboard He Leak Test Rates | ≤ 1×10-10Pa·m3/sec | |
Atmospheric Temperature | -10oC~60oC | |
Actuation Pressure (Pneumatic) | 0.4~0.7MPa (G) | |
Cycle Life (N2 Charged, In-house Test) | Manual Valve | 100,000 cycles |
Pneumatic Valve | 4 million cycles | |
KITZSCT閥VLD系列產品介紹
VLD系列體現了對KD系列中對簡單性和實用性的追求。 VLD系列通過最小化關鍵零件的數量來簡化。
特點
VLD系列在保持基本性能，材料和清潔度不變的同時，通過減少零件數量和更改檢查和加工方法，實現了安全性和低成本。
因為清潔和檢查過程與我們的常規模型相同，所以可靠性和耐用性沒有變化。
通過最高水平的制造環境和拋光工藝，實現半導體中使用的高純氣體的最大顆粒性能。
The VLD series embodies the pursuit of simplicity and utility found in the KD series. The VLD series achieves simplification through the minimization of the number of critical parts.
Features
While maintaining the same degree of basic performance, material, and cleaning, the VLD series realizes security and low cost through overall reduction of the number of parts and changes to the review and processing methodology.
Because the cleaning and inspection processes are the same as our conventional model, there is no change in reliability and durability.
Achieves maximum particle performance for high-purity gases used in semiconductor by the highest-level manufacturing environment and polishing process.

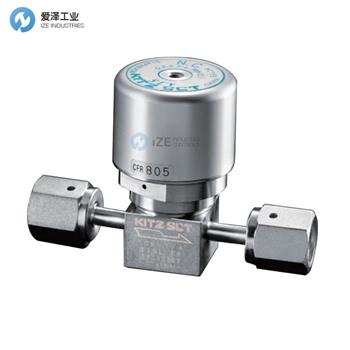

KITZSCT閥VLD4CS-VFC-EP-316L
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件KITZSCT 閥部分型號：
KITZSCT VLD4CS-VFC-RD-STD-316L
KITZSCT VLD4CS-VFC-RD-EP-316L
KITZSCT VLD4CS-VFC-RD-SEP-316LE
KITZSCT VLD4CS-VFC-GR-STD-316L
KITZSCT VLD4CS-VFC-GR-EP-316L
KITZSCT VLD4CS-VFC-GR-SEP-316LE
KITZSCT VLD4CS-VFC-SL-EP-316L
KITZSCT VLD4CS-VFC-SL-SEP-316LE
KITZSCT VLD4CS-VFC-BK-EP-316L
KITZSCT VLD4CS-VFC-BK-SEP-316LE
KITZSCT VLD4CS-VFC-YE-EP-316L
KITZSCT VLD4CS-VFC-YE-SEP-316LE
KITZSCT VLD4CS-VFC-BR-EP-316L
KITZSCT VLD4CS-VFC-BR-SEP-316LE
KITZSCT valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KITZSCT閥VLD4CS-VFC-EP-316L的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KITZSCT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
