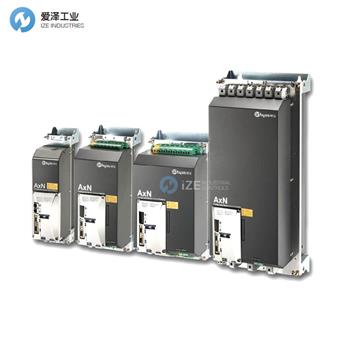

PHASE驅動器AXN系列介紹
AxN系列是一款獨立設備，配備B6整流器，輸入電流范圍為9至200A（連續工作）。
AxN系列提供4 Arms至300 Arms的完整電流范圍，涵蓋6種型號（AxM II、AxN和AxW DC），并提供各種接口，包括模擬量（+/-10V）、現場總線（CANOpen和EtherCAT）、脈沖和方向控制。
AxN系列配備全面的模擬量和數字量I/O接口，還提供多端口編碼器接口，支持EnDat、Hiperface、SinCos、TTL或旋轉變壓器等常用數字協議。
新型交流驅動器AxN由Phase Motion Control開發，是U3無刷電機和TK力矩電機的理想搭檔。
AxN 系列涵蓋 4 種尺寸，電流范圍從 15 Arms 到 110 Arms，并配備多種接口：模擬量 (+/-10V)、現場總線（CANOpen 和 EtherCAT）、脈沖和方向。
AxN 功能包括完整的模擬和數字 I/O 接口，以及一個多端口編碼器接口，可兼容 EnDat、Hiperface、SinCos、TTL 或旋轉變壓器等常用數字協議。 AxN 設計的基本原則包括：堅固耐用（確保所有內部組件均焊接牢固，連接器的設計能夠承受惡劣的環境條件）；靈活性（通過提供三種安裝選項的多功能冷卻板實現）；尖端技術（例如，一流的控制回路（電流：1 us 周期，速度：125 us 周期，位置：125 us 周期））以及用于磁場削弱的全新高性能電壓控制算法（高達 10 倍拐點速度），即使在高動態應用中也是如此）。
此外，AxN 擁有符合 IEC61131-3 標準語言的內部 PLC 可編程性，并輔以一整套軟件管理和調優工具，所有這些都體現了 Phase Motion Control 最新 AxN 系列驅動器的標志性特征。
The AxN Series is a stand-alone device with B6 rectifier input in a range from 9 to 200A (continuous duty).
AxN Series signifies a complete current range between 4 Arms and 300 Arms across 6 sizes (AxM II, AxN, and AxW DC), alongside various interfaces including analogue (+/-10V), fieldbus (CANOpen and EtherCAT), pulse, and direction.
Featuring a comprehensive set of analogue and digital I/Os, AxN Series also offers a multiport encoder interface supporting popular digital protocols such as EnDat, Hiperface, SinCos, TTL, or resolver.
New AC drive AxN has been developed by Phase Motion Control and is the perfect partner for U3 brushless motors and for TK torque motors.
AxN Series embodies a comprehensive current range spanning from 15 Arms to 110 Arms across 4 sizes, complemented by diverse interfaces: analogue (+/-10V), fieldbus (CANOpen and EtherCAT), pulse, and direction.
Included within AxN’s capabilities is a complete array of analogue and digital I/Os, along with a multiport encoder interface accommodating prevalent digital protocols like EnDat, Hiperface, SinCos, TTL, or resolver. Fundamental principles guiding AxN’s design encompass robustness, ensuring all internal components are soldered and connectors are engineered to withstand harsh environmental conditions, flexibility, enabled by a versatile cooling plate allowing three mounting options, and cutting-edge technology, exemplified by best-in-class control loops (current: 1 us cycle time, speed: 125 us cycle time, position: 125 us cycle time) and a new high-performance voltage control algorithm for field weakening (up to 10 times knee speed) even in highly dynamic applications.
Furthermore, AxN boasts internal PLC programmability compliant with the IEC61131-3 standard languages, supplemented by a comprehensive suite of software management and tuning tools, all embodying the defining features of Phase Motion Control’s latest AxN Series drives.
PHASE驅動器AXN系列其他常用型號：
PHASE AXN200.300.4F000F0000
PHASE AXN.09.20.4
PHASE AXN.16.30.4
PHASE AXN.22.44.4
PHASE AXN.35.70.4
PHASE AXN.50.100.4
PHASE AXN.70.140.4
PHASE AXN.90.150.4
PHASE AXN.110.200.4
PHASE AXN.110.250.4
PHASE AXN.150.300.4
PHASE AXN 200.400.4 C000F00 00
PHASE GENERAL DRIVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PHASE驅動器AXN200.300.4F000F0000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PHASE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
PHASE驅動器AXN系列AXN200.300.4F000F0000技術參數
