CARRARO減壓閥UBAN系列UBAN/AF21360技術參數
Function | Reducing |
Size | 1/2 "to 2" - (DN 15 to DN 50) |
Connection | Thread (F-NPT or GAS / BS) |
Flange | (ANSI or PN) |
Seat | Single |
Pressue step | Max ANSI 1500, PN 16 to PN 250 |
CV | From 0.031 to 12.8 |
Valve body | Steel, stainless steel and other "exotic" materials |
Trim | Stainless steel (standard) and other "exotic" materials |
Membrane | Neoprene, EPDM, FKM, stainless steel etc. |
Input pressure | 280bar(g) |
Pressure control range | 0.0012 - 52 bar(g) |
Temperature | Min: -196 °C Max:: 300 °C |
CARRARO減壓閥UBAN系列介紹
? UBAN系列由彈簧加載、直動式減壓調節器組成。其主要用途是控制出口壓力。
? 它們的閥體尺寸范圍從 ?英寸到2英寸（DN15 到 DN50），并且可以配備各種端部連接選項。
? 螺栓法蘭設計可以輕松定制面對面尺寸，使其易于安裝并適合更換舊閥門。
? 這些調節器結構緊湊耐用，適用于惡劣環境，且易于安裝和維護。
? The UBAN series consists of spring-loaded, direct-operated pressure-reducing regulators. Their primary purpose is to control outlet pressure.
? They come in body sizes ranging from ? inch to 2 inches (DN15 to DN50) and can be fitted with various end connection options.
? The bolted flanged design allows for easy customization of face-to-face dimensions, making them simple to install and suitable for replacing older valves.
? With a compact and durable construction, these regulators are built for tough environments and are designed for easy installation and maintenance.
CARRARO減壓閥UBAN系列常用型號：

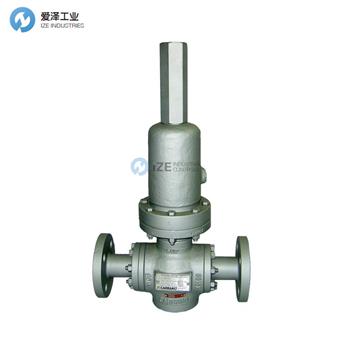

CARRARO UBAN/AF21360
CARRARO PRESSURE REDUCING VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CARRARO減壓閥UBAN/AF21360的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CARRARO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
