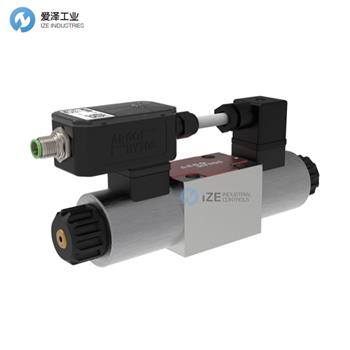

ARGO HYTOS電磁閥PRM2-063Y11/30-24EL7-A技術參數
Proportional directional control spool valve | PRM2 |
Valve size | 06 |
Spool symbols see table ?Spool Symbols“ | 3Y11 |
Nominal flow rate at Δp=10 bar (145 PSI) | 30-30 l/min (7.9 GPM) |
Rated supply voltage of solenoid | 24-24 V DC |
Integrated electronic control unit | EL7-A-Electronic control unit EL7-IA with an analogue input command signal |
ARGO HYTOS電磁閥PRM2-06系列介紹
比例方向控制閥，帶模擬控制電子設備
PRM2-06
尺寸 06 (D03) ? 最大流量 30 升/分鐘 (8 GPM) ? 最大壓力 350 巴 (5100 PSI)
這種閥門是符合 ISO 4401（尺寸 06）和 DIN 24340 (CETOP 03) 的底板安裝表面的比例方向控制滑閥
該閥門旨在控制執行機構的運動方向，并在給定范圍內進行連續速度調節
通過閥門的體積流量與電輸入指令信號成正比
可以通過外部或內部電子控制單元 (ECU) 以連接器插頭的形式進行閥門控制
閥芯具有手動超控功能
可選擇沒有集成 ECU 的閥門的電連接器類型
線圈連接器的位置可調，適合安裝，通過松開緊固螺母旋轉線圈實現
標準版本中，閥體進行磷化處理以提供基礎表面防腐蝕保護，并作為涂裝的準備，而鋼制部件進行鍍鋅處理，以達到按 ISO 9227 的 240 小時鹽霧保護
提供增強型表面保護以用于移動領域的閥體和鋼制部件（ISO 9227，520 小時鹽霧）
Proportional Directional Control Valve, with Analog Control Electronics
PRM2-06
Size 06 (D03) ? Qmax 30 l/min (8 GPM) ? pmax 350 bar (5100 PSI)
Proportional directional control spool valve with subplate mounting surface acc. to ISO 4401 (size 06) and DIN 24340 (CETOP 03)
The valve is designed for control of movement direction of actuator and continuous speed regulation in the given range
The volumetric flow through the valve is proportional to the electrical input commend signal
Valve control with the help of external or internal electronic control unit (ECU) in the form of connector plug
Manual override of valve spool
Optional type of electric connector for the valve without integrated ECU
Adjustable position of coil connector suitable for mounting, achievable by turning the coil after loosening the fastening nut
In the standard version, the valve housing is phosphated for basic surface corrosion protection and as preparation for painting. Steel parts are zinc-coated for 240 h salt spray protection acc. to ISO 9227
Enhanced surface protection for mobile sector available for the valve housing and steel parts (ISO 9227, 520 h salt spray)
ARGO HYTOS電磁閥PRM2-06系列其他常用型號：
ARGO HYTOS PRM2-063Y11/30-24EL7-A
ARGO HYTOS PRM2-063Y11/30-24EK
ARGO HYTOS PRM2-063Y11/30-24E1K1
ARGO HYTOS PRM2-063Z11/15-12LW
ARGO HYTOS PRM2-062Y51/15-12E12A
ARGO HYTOS PRM2-063Y11/35-00
ARGO HYTOS PRM2-063Y11/15-24
ARGO HYTOS PRM2-062Z11/30-24E1K1
ARGO HYTOS PRM2-06-3-Z11/35-12E1K1V/M
ARGO HYTOS SOLENOID VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ARGO HYTOS電磁閥PRM2-063Y11/30-24EL7-A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
