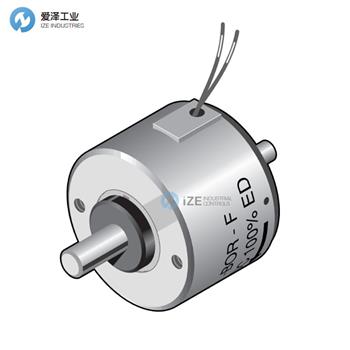

KUHNKE旋轉電磁閥D53-ROL-N-24VDC 100%ED參數介紹
Rotary solenoids | D |
Size | 5 |
Angular travel | 3-35° |
Shaft and rotation options | ROL |
Coil terminals | N-Terminal box |
Nominal voltage | 24-Standard voltage |
Work Environment | 100%ED-Perm. duty cycle under air cooled conditions (LK) |
KUHNKE旋轉電磁閥D系列介紹
KENDRION 的旋轉電磁鐵特別適用于機械工程、醫療和實驗室技術以及移動機械和運輸領域的應用。它們作為激活電磁鐵在分揀閘門、節流閥和鎖定系統中有著良好的記錄。兩側帶有球軸承的軸確保精確定位和最大耐用性。由于對線性加速度不敏感，這種旋轉電磁鐵也用于鐵路工程以及飛機中的設備。
單沖程版本有兩種型號。D 系列由圓柱形旋轉電磁鐵組成。E 系列則采用方形外形，提供更高的效率，在最小空間內獲得更大的扭矩。
旋轉電磁鐵有多種型號可供選擇。基本設計為帶有回程彈簧的單沖程旋轉電磁鐵和帶有兩個線圈的反向旋轉電磁鐵。根據要求，可以提供針對特殊應用的定制設計，包括帶插頭端子的型號、修改過的軸或特定應用的安裝孔。
標準版本和定制
優選型號設計用于 24 V DC 操作，支持 100% 的工作周期。所有型號可用于 25° 到 95° 之間的旋轉運動。帶有兩側軸的 BOR 型號可作為右手或左手版本使用，旋轉角度在 45° 或 95° 之間。這些電磁鐵配備了安裝在右側軸上的回程彈簧。根據電磁鐵的大小、旋轉角度和工作周期，可能需要使用所謂的“軟”回程彈簧。該旋轉電磁鐵的訂貨號由附加代碼“DS9429”組成，便于識別。
可根據要求提供替代軸設計、帶安裝法蘭的模型或反向旋轉電磁鐵?？赡艿母膭舆€包括針對特殊工作電壓或特定工作周期的個體電磁鐵設計，以及個性化的連接技術，如定制的電纜股或接頭。一般而言，這些電磁鐵設計用于以 24 V 的額定工作電壓進行直流操作。通過使用額外的外部整流器，設計為 205 V DC 操作的型號可以直接連接到市電供電。
The Rotary Solenoids from KENDRION especially match applications in mechanical engineering, medical and laboratory technology, or the field of mobile machinery & transportation. They have a proven record as activation solenoids for sorting gates, throttles, and locking systems. A shaft with ball bearings on both sides ensures precise positioning and maximum durability. Because it is insensitive to linear acceleration, such rotary solenoids are also used for railway engineering as well as devices in aircraft.
Single-stroke versions are available in two versions. The D series consists of rotary solenoids in a cylindrical form factor. The E series features a square form factor, offering higher efficiency with more torque at a minimum of space.
The rotary solenoids are available in a variety of models. Basic designs are single-stroke rotary solenoids with return spring and reversing rotary solenoids with two coils. Custom designed versions for special applications are available on request. These include models with plug-in terminals, modified shaft, or application-specific mounting holes.
Standard version and customization
Preferred models are designed for 24 V DC operation and 100% ED. All models are available for pivotal movements between 25° and 95°. The model BOR with shafts on both sides can be used as a right-handed or left-handed version with rotary angles between 45° or 95°. These solenoids are equipped with a return spring mounted at the right-hand shaft. Depending on the size of the solenoid, its rotary angle, and the duty cycle, it might be necessary to use a so-called ?soft“ return spring. The order number of these rotary solenoids consists of the additional code ?DS9429“ for easy recognition.
Alternative shaft designs, as well as models with mounting flange or reverse rotary solenoids, are available on request. Possible modifications also include individual solenoid designs for special operating voltages or specific duty cycles, as well as individual connection technologies, such as custom-made cable strands or terminals. Generally, these solenoids are designed for DC operation at a nominal operating voltage of 24 V. Using an additional external rectifier, models designed for 205 V DC operation can be operated directly at the mains power supply.
