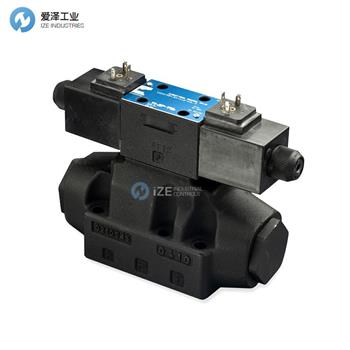

DUPLOMATIC閥DSP7-S3/20N-EE/D24K1技術參數
Code | DSP7-S3/20N-EE/D24K1 |
Type | DSP=Directional valve,solenoid actuated,pilot operated |
Size | 7=Size: ISO 4401-07 |
Spool type | S3=Spool type (see point 2) |
Series | 20 |
Seals: | N = NBR seals for mineral oil (standard) |
Piloting (see point 9): | E= external |
Drainage (see point 9): | E = External |
DC power supply | D24 = 24 V |
Coil electrical connection | K1 = plug for connector type EN 175301-803 (ex DIN 43650) |
DUPLOMATIC電磁換向閥DSP7系列介紹
DSP7 是定向閥，采用先導操作，通過電磁閥或液壓（DSC7）驅動，適合底板安裝，流量可達300升/分鐘。提供高壓版本，最高可達420 bar。閥門可配備直流或交流電磁閥。直流電磁閥也可以通過使用內置整流橋的連接器接入交流電源。與標準手動超控閥替代的有防護罩保護版本。該閥門系列還包括高IP等級和抗腐蝕性能的版本。
The DSP7 are directional valves, pilot operated, solenoid or hydraulic (DSC7) actuated, for subplate mounting with flow rates up to 300 l/min. A version for high pressure, up to 420 bar, is available. The valve is available with DC or AC solenoids. DC solenoids can also be fed with AC power supply, by using connectors with a built– in rectifier bridge. Alternative to the standard manual override there is a boot protected version. The valves range also includes versions for high IP degree and corrosion resistance.
DUPLOMATIC閥DSP7系列其他常用型號：
DUPLOMATIC DSP7-S3/20N-EE/D24K1
DUPLOMATIC DSP7-S3/20N-IE/A110K1
DUPLOMATIC DSP7-S3/20N-II/D24K1
DUPLOMATIC DSP7-S3/20N-11/K1
DUPLOMATIC DSP7-S3/20N-II/D24K1/CM
DUPLOMATIC VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC閥DSP7-S3/20N-EE/D24K1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
