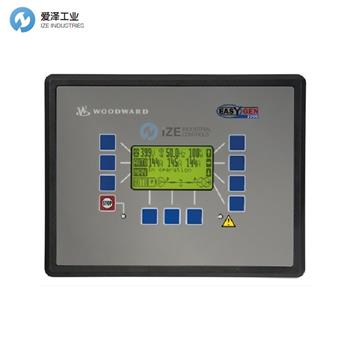

WOODWARD控制器8440-1884描述
概述
8440-1884 是 Woodward 的一款發電機組控制器，屬于easYgen-2000 系列。該系列旨在為多達 16 套發電機組提供控制和保護包功能，適用于孤島配置或發電機組與市電的并聯操作。8440-1884 具有多種連接選項，有助于確保其能與許多現有工業設備進行通信。
功能
8440-1884 具有多種通過離散輸入實現的操作模式，包括自動、停止、手動、負載測試和無負載測試模式。它還具備斷路器控制功能，如監控、滑移頻率同步、相位匹配同步和開關控制。在負載轉移方面，該型號支持互換、開/關切換、市電并聯、軟加載和軟卸載。8440-1884 還可以通過冷卻液溫度或定時器來控制預熱。
更多信息
8440-1884 可以通過界面或模擬/離散輸入進行遠程控制。該設備可以在調整功率、無功功率、電壓、轉速、頻率和功率因數設定點等方面進行控制。8440-1884 支持 11 種不同的語言，可在設備中進行配置。該設備的顯示屏為互動式 128 x 64 點陣圖形 LC 屏幕，配有軟按鍵。
General
The 8440-1884 is a Woodward genset controller from the advanced easYgen-2000 series. This series was designed to provide genset control and protection package features to up to 16 gensets in island configuration or a genset and utility in parallel operation. The 8440-1884 has a range of connectivity options that help ensure it can communicate with many existing industrial setups.
Features
The 8440-1884 has several possible operation modes via discrete inputs. These include Auto, Stop, Manual, Load test, and No Load test modes. It also has breaker control capabilities such as monitoring, slip frequency synchronization, phase matching synchronization, and open-close control. As far as load transfer goes for this model, it is capable of interchange, open/closed transition, mains parallel, soft loading and unloading. The 8440-1884 can also use coolant temperature or timer to control warm-up.
More Information
The 8440-1884 may be controlled remotely either from the interface or through analog/discrete inputs. The unit can be controlled in aspects such as adjusting power, reactive power, voltage, speed, frequency, and power factor set points. The 8440-1884 supports 11 different languages which are configurable in the unit. The display of this unit is an interactive 128 x 64 dot graphical LC screen with soft keys.
常用WOODWARD控制器型號：
WOODWARD 8440-1884
WOODWARD Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WOODWARD控制器8440-1884的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for WOODWARD products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
WOODWARD控制器8440-1884介紹
