TELCO光電放大器PA11B403T技術參數
Product Data | |
Function | Amplifier |
Supply Voltage | 24 V dc |
Sensing Range | 70 m |
Sensitivity Adjustment | Manual |
Output | NPN/PNP |
Housing | 11-pole DIN socket |
Technical Data | |
Supply Voltage | 24 V dc |
Voltage Tolerance | +/– 15 % |
Current Consumption | Max. 3,5 VA |
Response Time ton / toff, Transistor | 25 ms / 25 ms |
Output, Transistor | 60 mA / 30 V dc |
Power On Indicator | Green LED |
Output Indicator | Yellow LED |
LR Sensor Failure Indicator | Red LED |
LT Sensor Failure Indicator | Red LED |
Signal Level Indicator | Green LED |
Sensor Monitor LED Drive | Green LED on the receiver: ‘Power ON’ |
Hysteresis | Approx. 45 % |
Operation Frequency, Transistor | 20 Hz |
Housing Material | Noryl |
Environmental Data | |
Operation Temperature | – 10 to +50 °C |
Storage Temperature | – 40 to +80 °C |
Sealing Class | IP 40 |

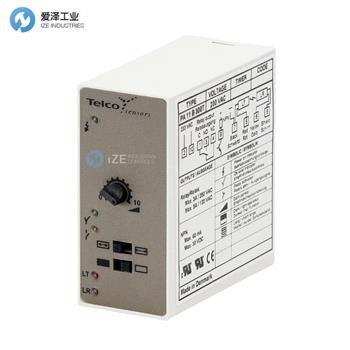

TELCO光電放大器PA11系列介紹
PA 11 是一款 1 通道光電放大器，可與 100、110 和 120 系列的遠程發射器 LT 和接收器 LR 配合使用。
該放大器系列可通過位于放大器前面板上的集成電位計手動調節靈敏度。輸出可從繼電器和 NPN 或 NPN 和 PNP 晶體管輸出中選擇，帶或不帶 0-10 秒開/關時間延遲。亮或暗功能以及長或短距離可通過開關選擇。
The PA 11 is a 1-channel photoelectric amplifier, which is to be used in conjunction with a set of remote transmitter LT and receiver LR from the series 100, 110 and 120.
This amplifier series offers manual sensitivity adjustment via integral potentiometers located on the front panel of the amplifier. Output can be selected from either a relay and NPN or NPN and PNP transistor outputs with or without a 0-10 sec on/off time delay. Light or dark function and long or short range are switch selectable.
TELCO光電放大器PA11系列其他常用型號：
TELCO PA 11 A 303T
TELCO PA 11 A 302T
TELCO PA 11 A 301T
TELCO PA 11 A 300T
TELCO PA 11 A 403T
TELCO PA 11 A 402T
TELCO PA 11 A 401T
TELCO PA 11 A 400T
TELCO PA 11 В 303T
TELCO PA 11 B 302T
TELCO PA 11 В 301T
TELCO PA 11 B 300T
TELCO PA 11 B 403T
TELCO PA 11 B 402T
TELCO PA 11 B 401T
TELCO PA 11 В 400T
TELCO PA 11 B 403T + TR11B
