COAX氣動閥LVP06系列技術參數
ports | threads G 1/4 |
function | NC / NO |
pressure range | 0-500 bar |
KV value | 7 l/min |
media | gaseous |
flow direction | A B as marked |
switching cycles | 300 1/min |
switching time | 100-3000 ms opening |
media temperature | -20 °C — +80 °C |
ambient temperature | -20 °C — +80 °C |
weight | 2,2 kg |

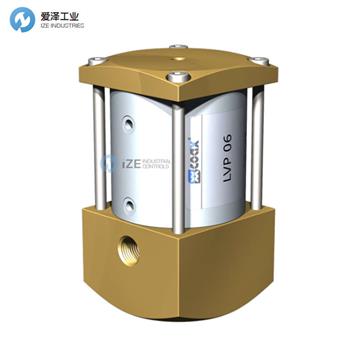

COAX氣動閥LVP06系列介紹
該類型為氣動閥，具有 2 個端口連接和 2 個切換位置，公稱寬度為 6 毫米。控制可通過直接安裝的 3/2 或 5/2 先導閥或客戶提供的先導閥進行。
LVP 06 專為高壓氣體而設計，但也可用于清潔流體。該閥門高可使用壓力為 500 bar。該系列在氣體填充技術以及石化工藝技術中應用非常成功。外殼材料由黃銅制成，閥座由蒙乃爾合金制成。在原位，閥門可以打開和關閉。終端位置可以通過感應限位開關指示。
特征
? 壓力范圍高達 500 bar
? 也適用于高達 40 bar 的氧氣
? 蒙乃爾合金閥座（適用于氧氣）
? 故障位置 NC 或 NO
? 感應限位開關，用于監控“開”或“關”的終端位置
? 適用于潔凈氣體或液體
? 緊湊的設計
? 根據要求采用 3/2 或 5/2 先導控制
This type is a pneumatically actuated valve with 2 port connections and 2 switching positions with a nominal width of 6 mm. Control is either carried out via a direct mounted 3/2 or 5/2 pilot valve or one provided by the customer.
The LVP 06 has been specially designed for high-pressure gases, but can also be used for clean fluids. The valve can be used up to a pressure of 500 bar. This series is used highly successfully in gas filling technology as well as process technology in petrochemicals. The housing material is made of brass, the valve seat is made of Monel. In the home position, the valve can be operated open and closed. The end position can be indicated by means of an inductive limit switch.
Features
? pressure range up to 500 bar
? also suitable for oxygen up to 40 bar
? valve seat made of Monel (suitable for oxygen)
? fail position NC or NO
? inductive limit switch for end position monitoring “open” or “closed”
? for clean gases or fluids
? compact design
? control with 3/2 or 5/2 pilot on request
COAX氣動閥LVP06系列其他常用型號：
COAX LVP06NO 545937
COAX LVP06NC 523568
COAX VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于COAX氣動閥LVP06NO 545937的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for COAX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
COAX氣動閥LVP06系列LVP06NO 545937技術參數及介紹
