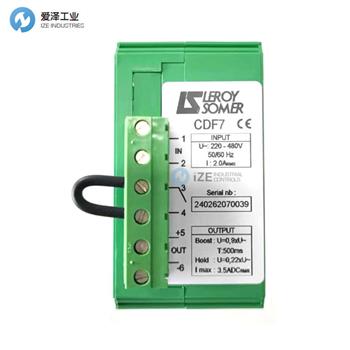

LEROY-SOMER電源CDF7技術參數
Mechanical characteristics | |
Mounting: | DIN RAIL ref. EN 50022 – NFC 63015 – DIN 46277-3. |
Ingress protection: | IP20 (except for removable connector) |
Ambient temperature: | -16°C to 55°C (-25°C to 85°C with derating) |
Relative humidity: | 98% max (non condensing) |
Storage temperature: | -40°C to 100°C |
Shock: | < 100 m/s2 16 ms (IEC 60 068-2-29) |
Vibration: | < 5 m/s2 10…150 Hz (IEC 60 068-2-6) |
Cable connection cross-section: | 2.5 mm2 max |
Weight: | 200 g |
Electrical characteristics | |
A.C. power supply: | 220 V to 480 V (-15%; +6%) |
Doping voltage (D.C.): | 0.9 x input voltage |
Holding voltage: | 0.22 x input voltage |
Maximum current: | 3.5 V RMS (5 s integration) |
Doping time: | 0.5 s |
Doping starting time: | 15 ms max |
LEROY-SOMER電源CDF7介紹
CDF 裝置可用于直接從交流電源提供直流制動。
兩個功能集成在一個自動序列中：
- 應用摻雜時間（0.5秒）來減少制動響應時間
- 降低的保持電壓允許制動器保持吸引狀態，同時降低線圈溫升。
該裝置未集成在電機中，而是單獨提供，應安裝在制動電機控制柜內。
The CDF device can be used to supply a D.C. brake directly from the A.C. supply.
Two functions are integrated in an automatic sequence:
- a doping time (0.5 s) is applied to reduce the brake response time
- a reduced holding voltage allows the brake to remain attracted while reducing the coil temperature rise.
This device is not integrated in the motor, it is provided separately and should be mounted inside the brake motor control cabinet.
LEROY-SOMER電源其他常用型號：
LEROY-SOMER CDF7
LEROY-SOMER SO7
LEROY-SOMER POWER SUPPLY NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LEROY-SOMER電源CDF7的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for LEROY-SOMER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
