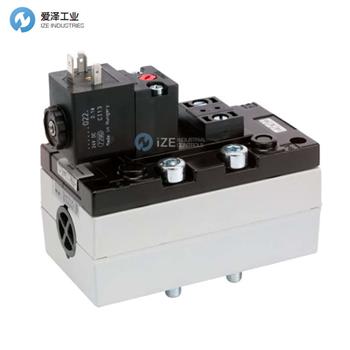

AVENTICS方向閥5813170650技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 4800 l/min |
Switching principle | 5/2, with spring return |
Compressed air connection output | Base plate ISO 5599-1 |
Min. working pressure | 3 bar |
Max. working pressure | 10 bar |
Operational voltage DC | 24 V |
Voltage tolerance DC | -10% / +10% |
Manual override | with detent, without detent |
Electrical connection type | Plug |
Electrical connection size | EN 175301-803, form A |
Actuating control | Single Solenoid |
Sealing principle | Soft seal |
Pilot | Internal |
Standards | ISO 5599-1 |
Pilot valve width | 30x22 mm CNOMO |
Valve type | Spool valve |
Blocking principle | Single base plate principle |
Connection type | Plate connection |
Return | With spring return |
Compressed air connection input | Base plate ISO 5599-1 |
Compressed air connection, exhaust | Base plate ISO 5599-1 |
Compressed air connection pilot exhaust | M5 |
Power consumption DC | 2 W |
Flow conductance C | 18.9 l/(s*bar) |
AVENTICS方向閥5813170650產品介紹
標準化閥門系統
ISO 尺寸 1 至 4 可供選擇
堅固的設計
集成排氣節流閥
多種電壓范圍
壓力范圍可達 16 bar
CNOMO接口
尺寸小
快速換檔時間
通過在線配置器輕松靈活地定制特定配置
Standardized valve system
ISO size 1 to 4 available
Robust design
Integrated exhaust throttles
Numerous voltage ranges
Pressure range up to 16 bar possible
CNOMO interface
Small dimensions
Fast shifting times
Easy and flexible custom specific configurations via online configurator
AVENTICS方向閥5813系列其他常用型號：
AVENTICS 5813170650
AVENTICS 5813170450
AVENTICS 5813171650
AVENTICS 5813171450
AVENTICS 5813172650
AVENTICS 5813172450
AVENTICS 5813173650
AVENTICS 5813173450
AVENTICS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS方向閥5813170650的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
