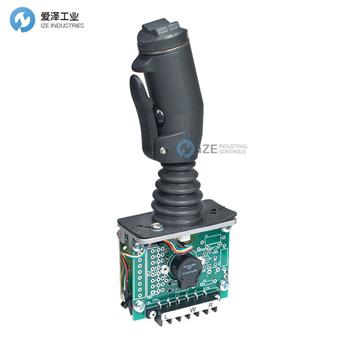

J.R.MERRITT操作手柄PRO4技術參數
Specifications | |
General Data | |
# of Axis | Single |
Output Options | Contacts, Microswitches, Potentiometer, Hall-Effect, PWM & CAN |
Joystick Action | Spring Return or Friction Brake |
Handle Travel | +/- 36 degrees for potentiometer |
Max # of Steps | Up to 3-0-3 with microswitches |
Handle Compatibility | 2 Piece, Round Ball, Mechanical Interlock, RH, RHS, BH, FG-2, FG-3, FG-4, FG-5, MG1, MG2, MG13, MG27, TH30, G56 |
Life | 10 million cycles |
Materials | Cast Aluminum body with plated steel side plates with self lubricating bearings, hard nickel chromium spring return arms, compression style return spring and brass gears. |
Est. Shipping Weight | 2 lbs. |
Est. Shipping Dimensions | 8 in. x 6 in. x 6 in. |
Mounting Data | |
Mounting Style | Drop-in or Panel (from below) |
Mounting Footprint | 2.56" x 2.56" |
Environmental Data | |
IP Rating | IP55 |
Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
J.R.MERRITT操作手柄PRO4介紹
The ultra-rugged PRO-4 provides precise proportional or discrete control for electro-hydraulic valves and AC/DC variable speed drives. Your specific control requirements can be accommodated by a variety of standard and custom engineered configurations. The PRO-4 is available with a variety of outputs including 11A microswitches, potentiometers, hall-effect, PWM, CAN, and VNSO contact blocks.
超堅固的 PRO-4 為電動液壓閥和 AC/DC 變速驅動器提供精確的比例或離散控制。 您的特定控制要求可以通過各種標準和定制工程配置來滿足。 PRO-4 提供多種輸出，包括 11A 微動開關、電位計、霍爾效應、PWM、CAN 和 VNSO 接觸塊。
J.R.MERRITT操作手柄其他常用型號：
J.R.MERRITT PRO4-14653
J.R.MERRITT Operating handle NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于J.R.MERRITT操作手柄PRO4-14653的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for J.R.MERRITT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
J.R.MERRITT操作手柄PRO4-14653介紹
